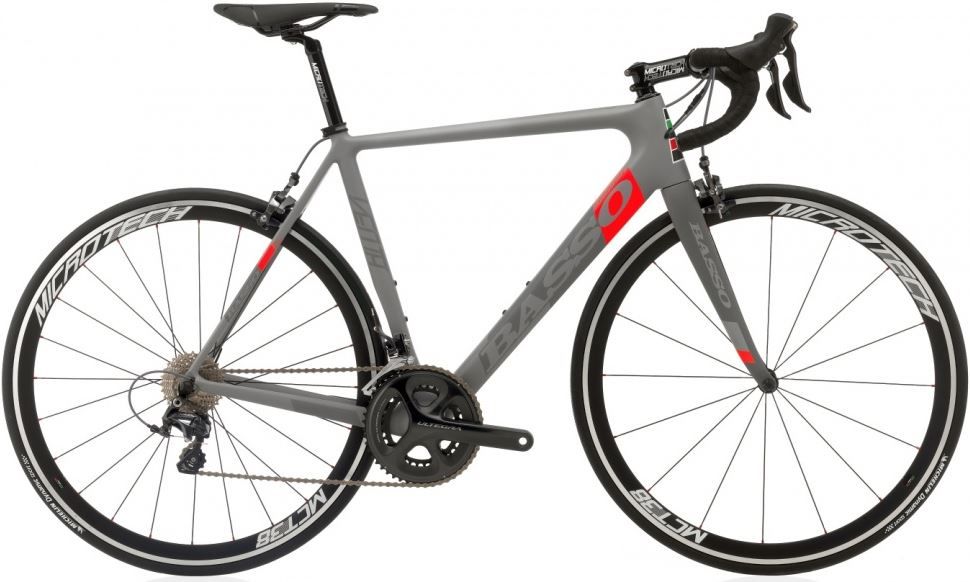

2016 Basso Venta MK I geometry
Full frame geometry for the 2016 Basso Venta MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 48 | 515 | 377 | 75 | 71.8 | 115 | 510 | 575 | 400 |
| 51 | 539 | 381 | 75 | 72 | 140 | 525 | 585 | 400 |
| 53 | 552 | 387 | 74 | 72.3 | 153 | 545 | 591 | 400 |
| 56 | 578 | 389 | 73.5 | 73.5 | 170 | 560 | 590 | 402 |
| 58 | 601 | 391 | 73 | 73.5 | 194 | 575 | 599 | 404 |
| 61 | 637 | 389 | 72.5 | 74 | 224 | 590 | 602 | 410 |
All measurements in millimetres unless marked (°) for angles.
