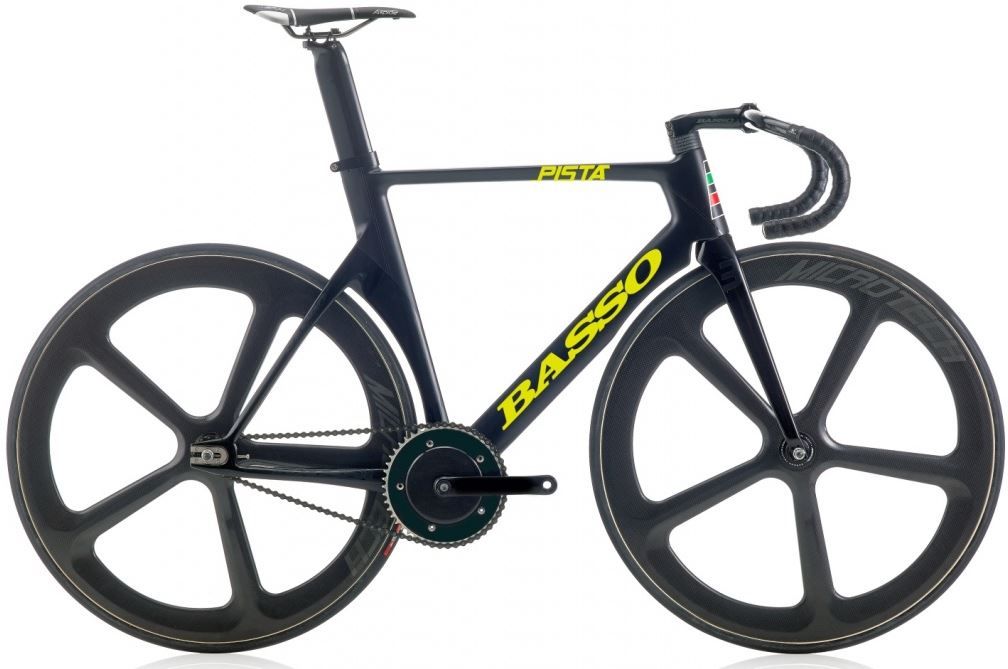

2016 Basso Pista geometry
Full frame geometry for the 2016 Basso Pista, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 44 | 494 | 380 | 75.3 | 72 | 110 | 510 | 487 | 568 | 377 |
| 51 | 534 | 392 | 75 | 74.5 | 141 | 536 | 542 | 570 | 377 |
| 53 | 550 | 402 | 74.5 | 74.5 | 160 | 555 | 559 | 584 | 373 |
| 55 | 563 | 410 | 74.5 | 74.5 | 174 | 567 | 577 | 596 | 373 |
All measurements in millimetres unless marked (°) for angles.
