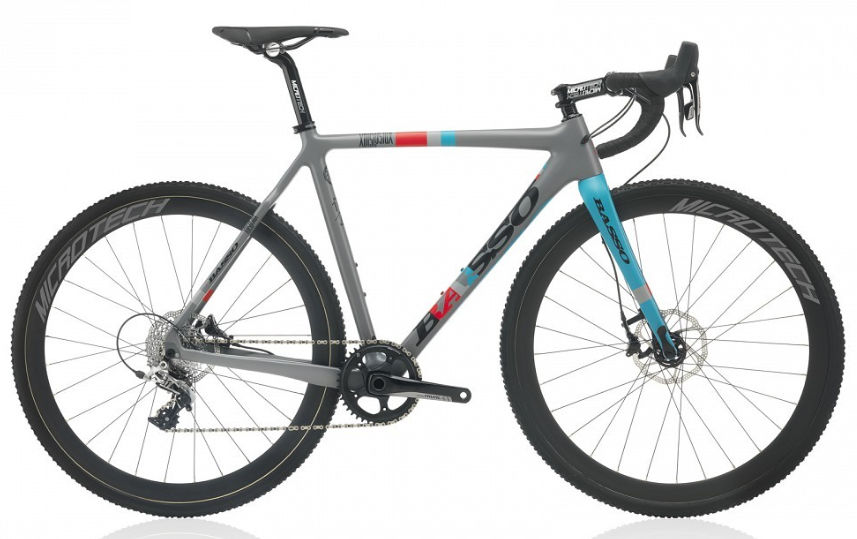

2016 Basso FastCross Disc geometry
Full frame geometry for the 2016 Basso FastCross Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 52 | 522 | 379 | 74 | 71.8 | 110 | 529 | 583 | 425 |
| 55 | 546 | 394 | 74 | 72 | 125 | 549 | 599 | 425 |
| 58 | 560 | 400 | 73.5 | 72 | 140 | 564 | 609 | 425 |
All measurements in millimetres unless marked (°) for angles.
