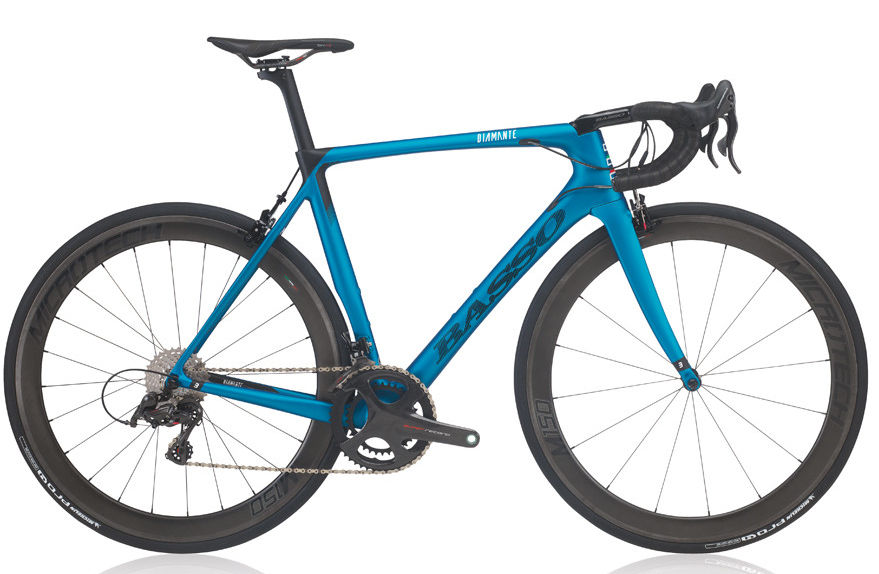

2019 Basso Diamante MK II geometry
Full frame geometry for the 2019 Basso Diamante MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 45 | 503 | 380 | 76 | 71.8 | 100 | 505 | 574 | 400 |
| 48 | 513 | 378 | 75 | 71.8 | 110 | 515 | 575 | 400 |
| 51 | 528 | 384 | 75 | 72 | 125 | 525 | 584 | 400 |
| 53 | 540 | 390 | 74 | 72.3 | 137 | 545 | 592 | 400 |
| 56 | 567 | 392 | 73.5 | 73.5 | 155 | 560 | 590 | 402 |
| 58 | 590 | 395 | 73 | 73.5 | 179 | 575 | 599 | 406 |
| 61 | 624 | 393 | 72.5 | 74 | 213 | 590 | 602 | 406 |
All measurements in millimetres unless marked (°) for angles.
