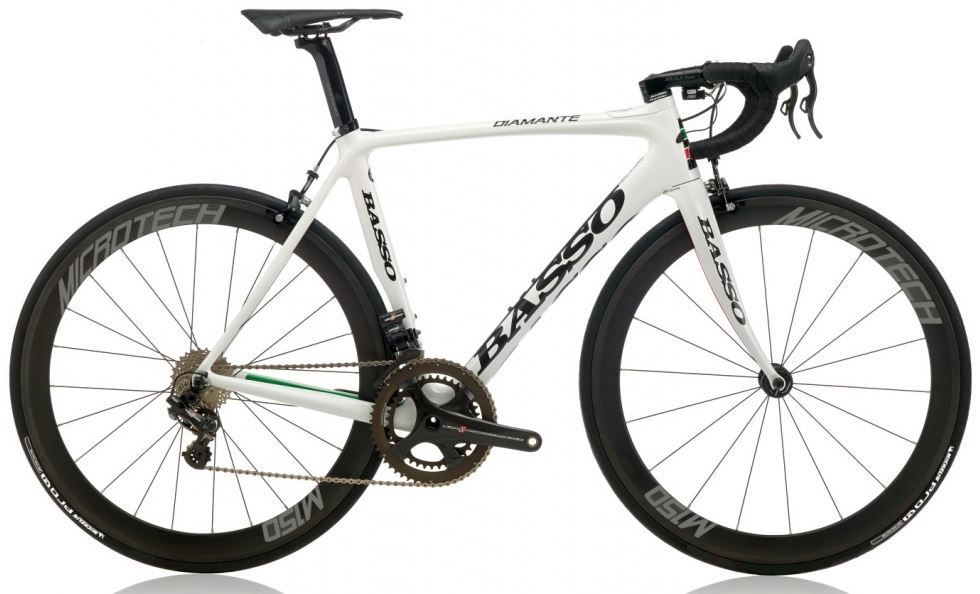

2016 Basso Diamante MK I geometry
Full frame geometry for the 2016 Basso Diamante MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 45 | 493 | 381 | 76 | 71.8 | 90 | 505 | 573 | 400 |
| 48 | 493 | 382 | 75 | 71.8 | 90 | 515 | 574 | 400 |
| 51 | 517 | 386 | 75 | 72 | 115 | 525 | 583 | 400 |
| 53 | 529 | 393 | 74 | 72.3 | 127 | 545 | 592 | 400 |
| 56 | 556 | 395 | 73.5 | 73.5 | 145 | 560 | 590 | 402 |
| 58 | 579 | 397 | 73 | 73.5 | 169 | 575 | 599 | 406 |
| 61 | 613 | 396 | 72.5 | 74 | 203 | 590 | 603 | 406 |
All measurements in millimetres unless marked (°) for angles.
