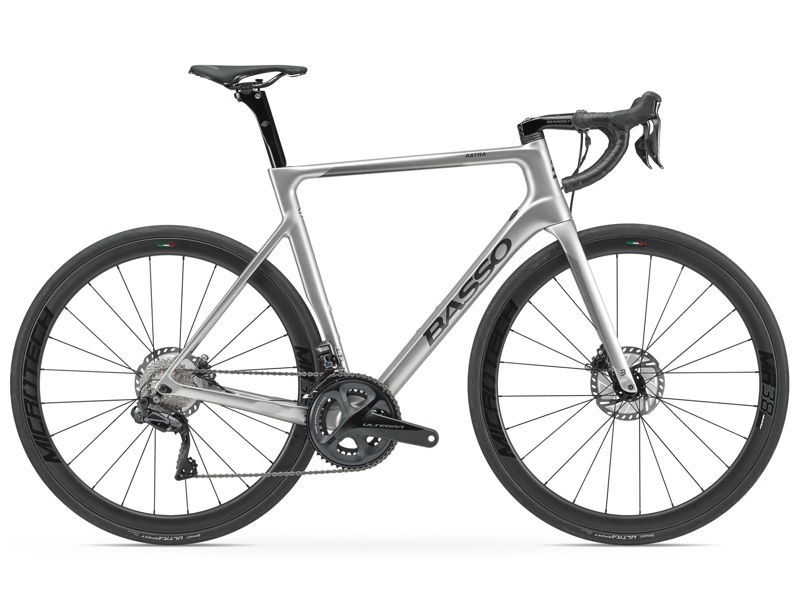

2021 Basso Asrta geometry
Full frame geometry for the 2021 Basso Asrta, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head tube (mm) | Top tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|
| 45 | 527.1 | 373.6 | 76 | 125 | 505 | 575.5 | 400 |
| 48 | 527.1 | 373.7 | 75 | 125 | 515 | 575.7 | 400 |
| 51 | 551.6 | 377.2 | 75 | 150 | 525 | 585.2 | 400 |
| 53 | 564.1 | 382.9 | 74 | 162 | 545 | 592 | 400 |
| 56 | 590.5 | 385.1 | 73.5 | 180 | 560 | 589.5 | 402 |
| 58 | 613.5 | 387.5 | 73 | 204 | 575 | 598.7 | 406 |
| 61 | 638.4 | 388.7 | 72.5 | 228 | 590 | 601.8 | 406 |
All measurements in millimetres unless marked (°) for angles.
