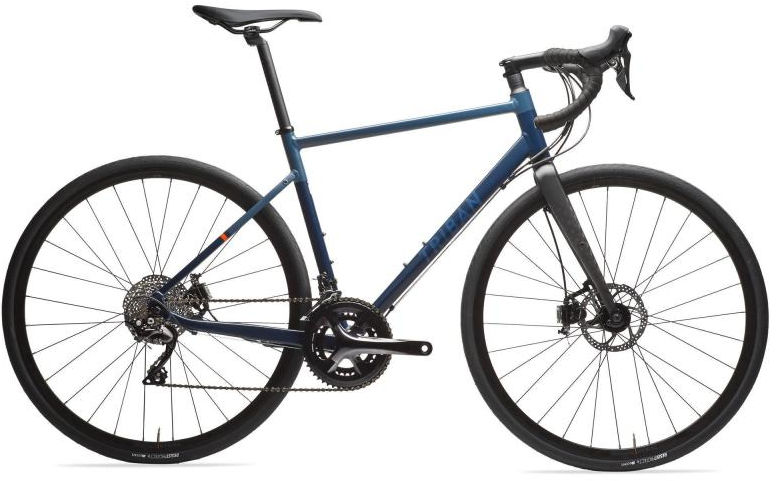

2019 B-Twin Triban RC 520 geometry
Full frame geometry for the 2019 B-Twin Triban RC 520, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 524 | 375 | 75 | 69.8 | 115 | 515 | 450 | 425 | 1010 |
| S | 542 | 380 | 74.5 | 70.8 | 130 | 530 | 480 | 425 | 1012 |
| M | 569 | 379 | 73.5 | 71.5 | 155 | 548 | 500 | 425 | 1014 |
| L | 603 | 385 | 73.5 | 73 | 185 | 564 | 520 | 425 | 1016 |
| XL | 633 | 386 | 73 | 73 | 215 | 580 | 530 | 425 | 1026 |
All measurements in millimetres unless marked (°) for angles.
