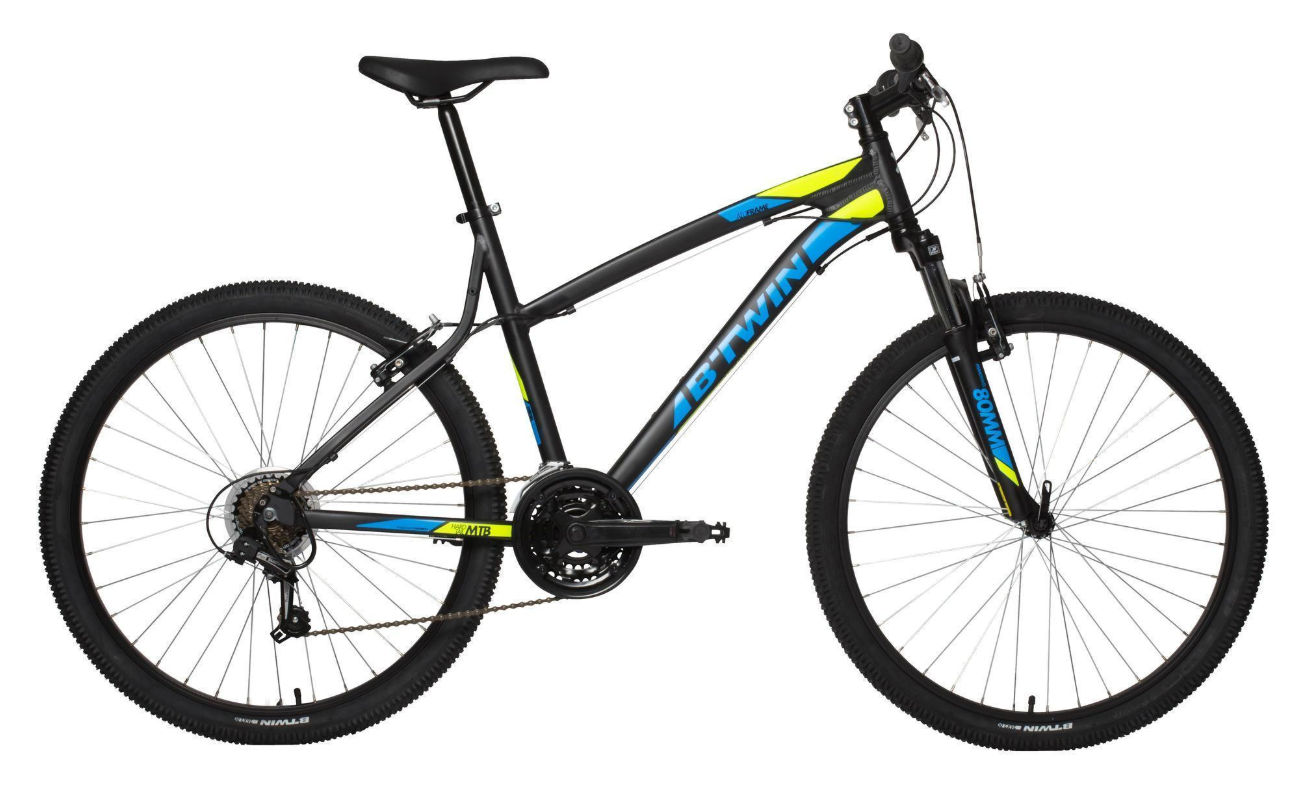

2019 B-Twin Rockrider 340 geometry
Full frame geometry for the 2019 B-Twin Rockrider 340, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 542 | 420 | 73 | 71 | 100 | 586 | 420 | 800 | 25 | 620 | 429 | 1048 | 38 |
| S | 551 | 409 | 73 | 71 | 110 | 577 | 450 | 820 | 25 | 631 | 429 | 1059 | 38 |
| M | 561 | 425 | 73 | 71 | 120 | 597 | 480 | 840 | 25 | 652 | 429 | 1080 | 38 |
| L | 594 | 427 | 73 | 71 | 155 | 609 | 535 | 886 | 25 | 665 | 429 | 1093 | 38 |
| XL | 637 | 444 | 73 | 71 | 200 | 639 | 590 | 936 | 25 | 697 | 429 | 1124 | 38 |
All measurements in millimetres unless marked (°) for angles.
