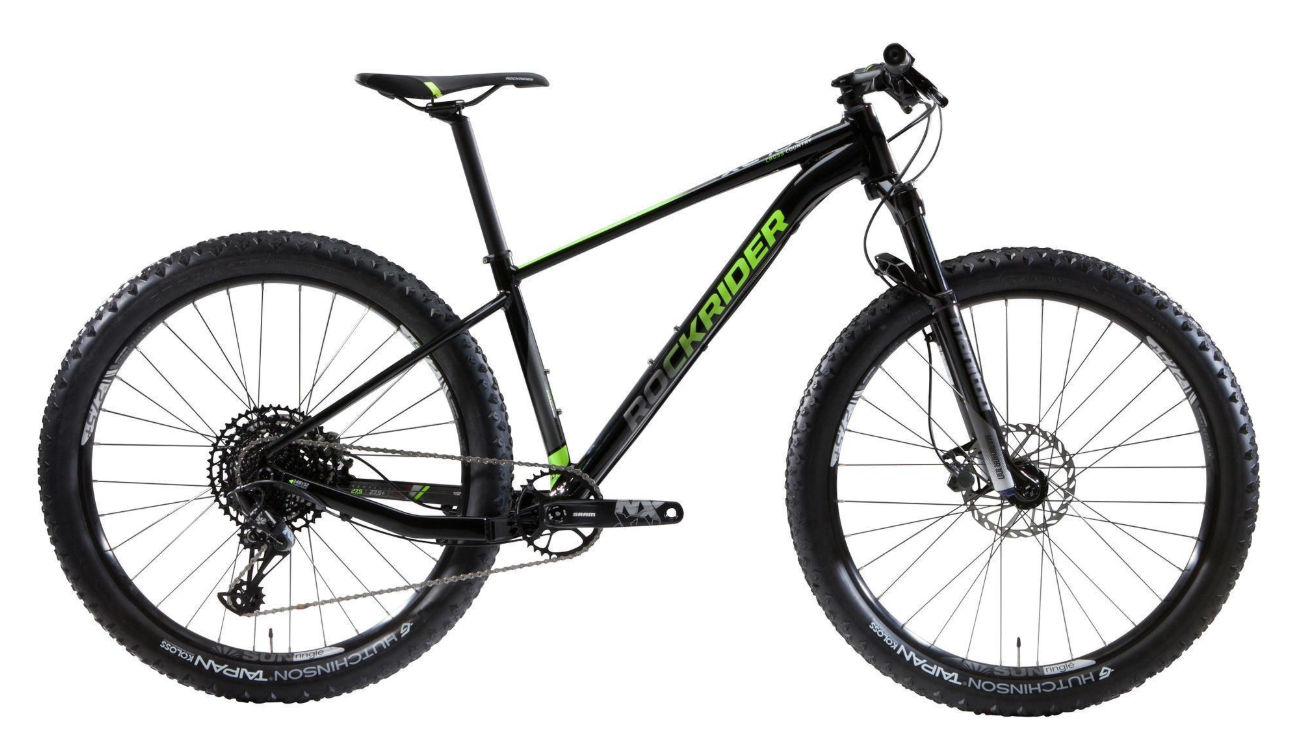

2019 B-Twin 100 XC geometry
Full frame geometry for the 2019 B-Twin 100 XC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 607 | 416 | 71 | 69.5 | 100 | 602 | 380 | 788 | 50 | 681 | 430 | 1106 | 48 |
| M | 612 | 434 | 71 | 69.5 | 105 | 610 | 400 | 802 | 50 | 701 | 430 | 1126 | 48 |
| L | 626 | 450 | 71 | 69.5 | 120 | 630 | 450 | 835 | 50 | 722 | 430 | 1148 | 48 |
| XL | 640 | 466 | 71 | 69.5 | 135 | 650 | 500 | 868 | 50 | 744 | 430 | 1169 | 48 |
All measurements in millimetres unless marked (°) for angles.
