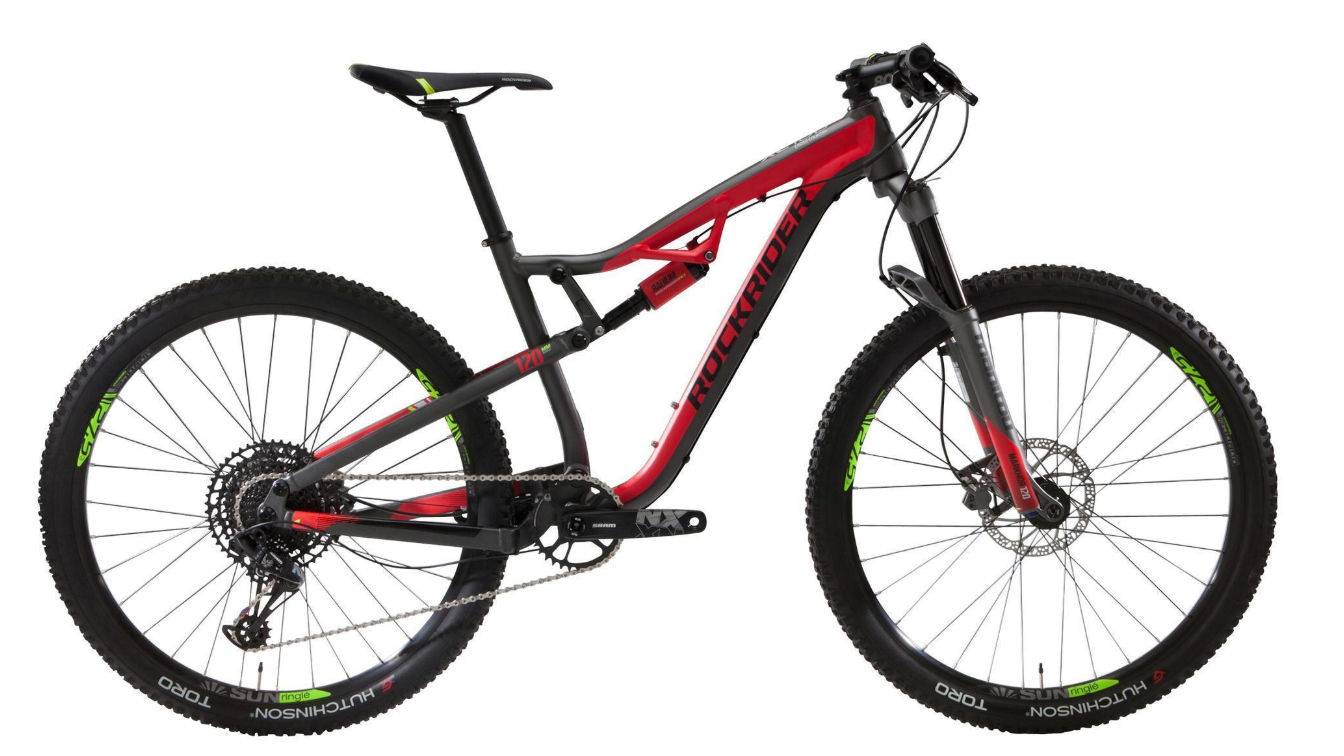

2019 B-Twin 100 S XC geometry
Full frame geometry for the 2019 B-Twin 100 S XC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 599 | 419 | 73 | 69.5 | 105 | 600 | 430 | 833 | 25 | 682 | 445 | 1126 | 46 |
| S | 599 | 397 | 73 | 69.5 | 105 | 580 | 420 | 828 | 25 | 662 | 445 | 1106 | 46 |
| L | 613 | 433 | 73 | 69.5 | 120 | 620 | 480 | 866 | 25 | 703 | 445 | 1146 | 46 |
| XL | 627 | 448 | 73 | 69.5 | 135 | 640 | 530 | 900 | 25 | 724 | 445 | 1168 | 46 |
All measurements in millimetres unless marked (°) for angles.
