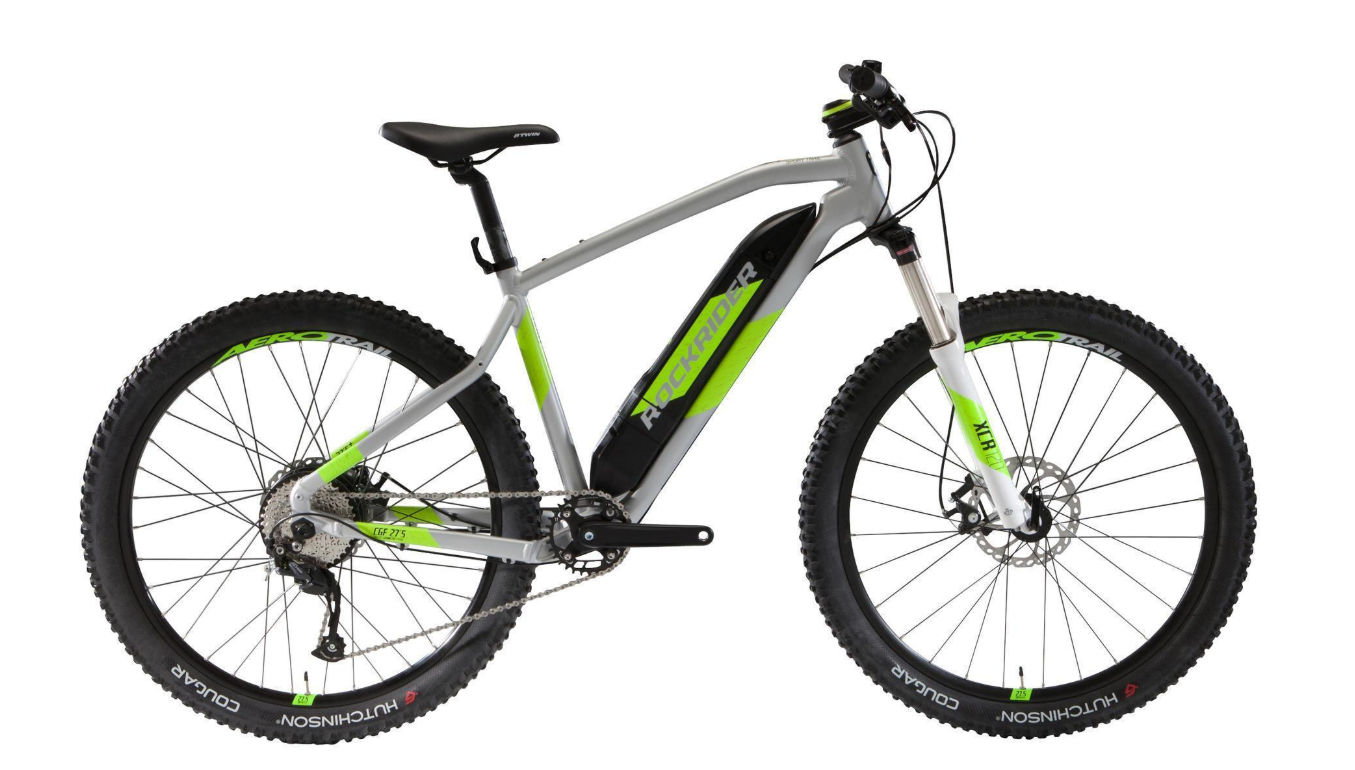

2019 B-Twin Rockrider E-ST 500 geometry
Full frame geometry for the 2019 B-Twin Rockrider E-ST 500, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 577 | 379 | 73 | 68 | 110 | 555 | 429 | 832 | 15 | 651 | 432 | 1083 | 42 |
| M | 596 | 403 | 73 | 68 | 130 | 585 | 436 | 845 | 15 | 683 | 432 | 1115 | 42 |
| L | 605 | 430 | 73 | 68 | 140 | 615 | 443 | 853 | 15 | 713 | 432 | 1145 | 42 |
| XL | 623 | 445 | 73 | 68 | 160 | 635 | 493 | 888 | 15 | 735 | 432 | 1167 | 42 |
All measurements in millimetres unless marked (°) for angles.
