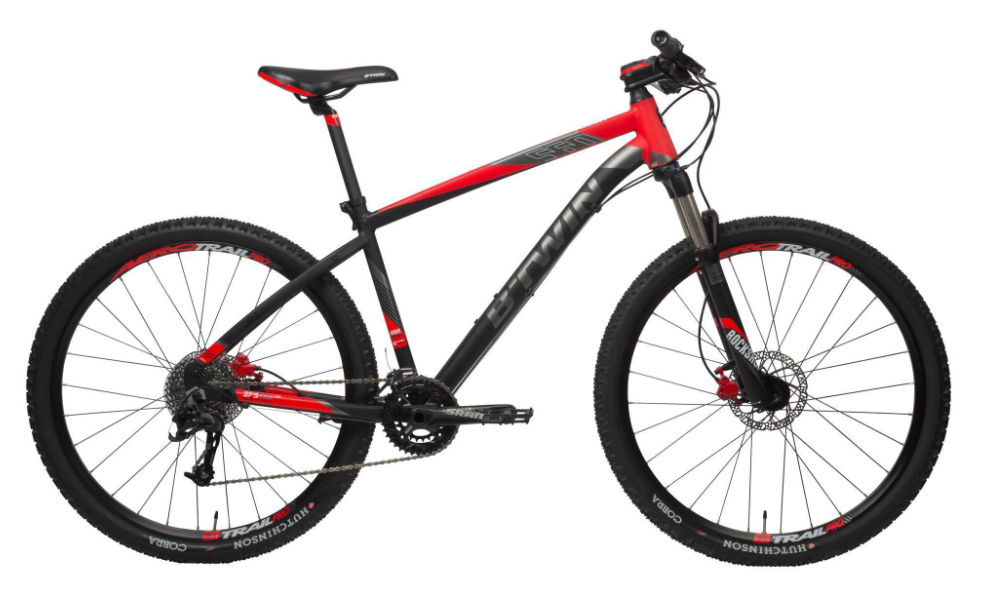

2019 B-Twin Rockrider ST 560 geometry
Full frame geometry for the 2019 B-Twin Rockrider ST 560, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 591 | 377 | 73 | 69.5 | 104 | 558 | 421 | 807 | 43 | 633 | 430 | 1059 | 42 |
| M | 609 | 403 | 73 | 69.5 | 124 | 588 | 432 | 821 | 43 | 665 | 430 | 1091 | 42 |
| L | 616 | 433 | 73 | 69.5 | 129 | 618 | 443 | 831 | 43 | 694 | 430 | 1121 | 42 |
| XL | 629 | 448 | 73 | 69.5 | 144 | 638 | 493 | 863 | 43 | 715 | 430 | 1142 | 42 |
All measurements in millimetres unless marked (°) for angles.
