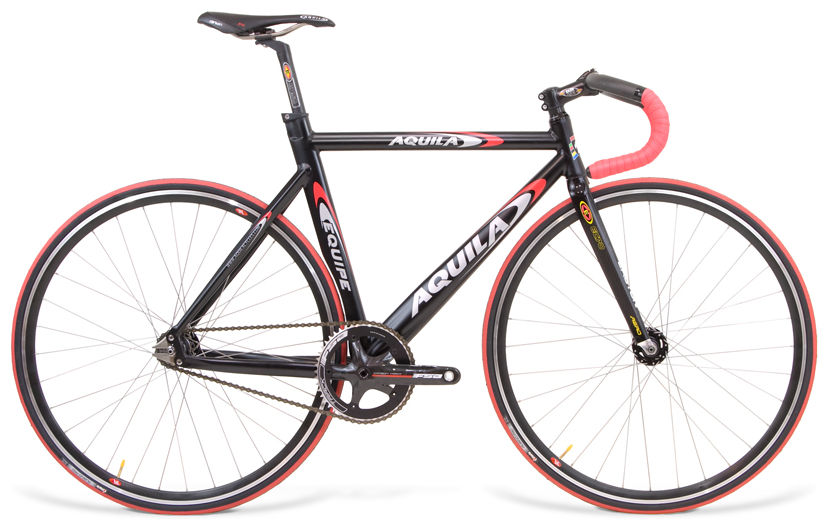

2015 Aquila Pista Equipe geometry
Full frame geometry for the 2015 Aquila Pista Equipe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 479 | 380 | 74 | 72.6 | 100 | 515 | 490 | 55 | 576 | 390 | 959 |
| 51 | 503 | 391 | 74 | 74.5 | 115 | 535 | 510 | 55 | 578 | 390 | 962 |
| 53 | 517 | 397 | 74 | 74 | 130 | 545 | 530 | 55 | 586 | 390 | 970 |
| 55 | 517 | 397 | 74 | 74 | 130 | 545 | 530 | 55 | 586 | 390 | 970 |
| 57 | 551 | 412 | 74 | 74 | 165 | 570 | 570 | 55 | 609 | 390 | 993 |
| 59 | 566 | 418 | 74 | 73.5 | 180 | 580 | 590 | 55 | 626 | 390 | 1010 |
All measurements in millimetres unless marked (°) for angles.
