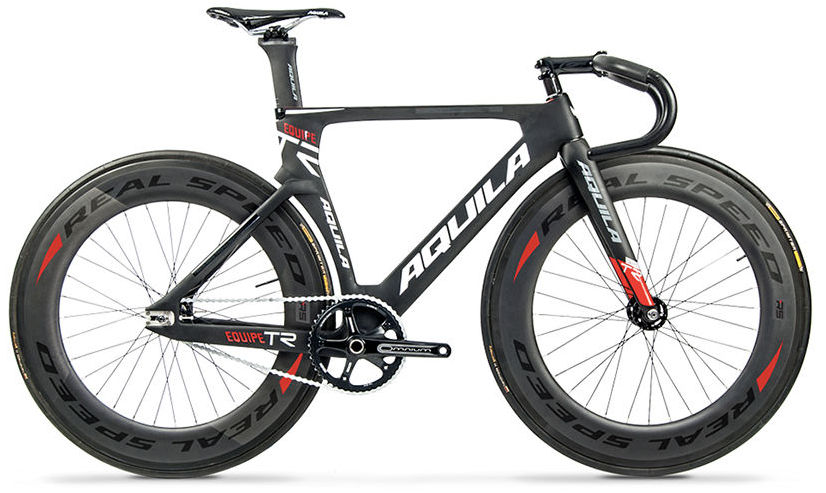

2015 Aquila Equipe TR geometry
Full frame geometry for the 2015 Aquila Equipe TR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 471 | 387 | 75 | 72.5 | 85 | 516 | 480 | 60 | 559 | 380 | 931 |
| 50 | 487 | 405 | 75 | 72.5 | 90 | 535 | 490 | 60 | 579 | 380 | 951 |
| 52 | 501 | 423 | 75 | 72.5 | 105 | 557 | 510 | 60 | 602 | 380 | 974 |
| 54 | 509 | 434 | 75 | 72.5 | 125 | 573 | 530 | 60 | 618 | 380 | 991 |
All measurements in millimetres unless marked (°) for angles.
