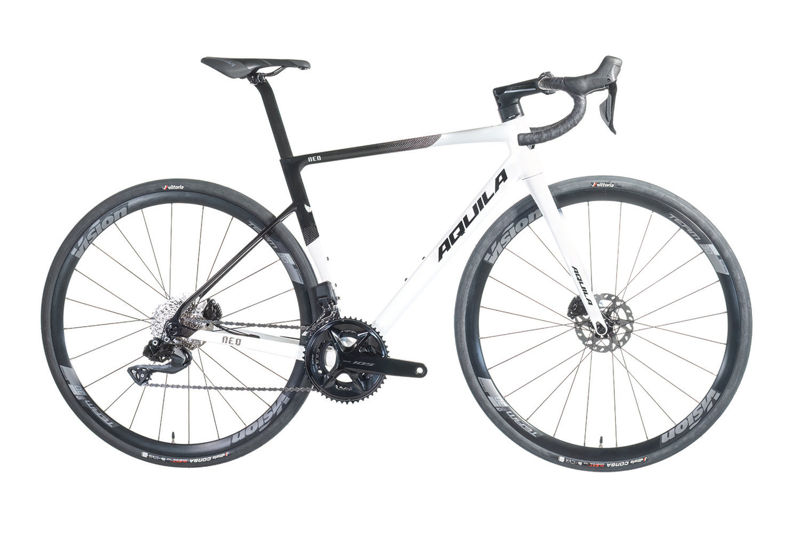

2023 Aquila Neo 2.0 geometry
Full frame geometry for the 2023 Aquila Neo 2.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 522 | 372 | 75 | 72 | 115 | 508 | 440 | 72 | 573 | 405 | 967 | 45 |
| 52 | 532 | 378 | 74 | 72.5 | 125 | 530 | 465 | 72 | 575 | 405 | 969 | 45 |
| 54 | 552 | 382 | 74 | 73 | 145 | 540 | 485 | 72 | 581 | 405 | 975 | 45 |
| 56 | 572 | 393 | 73.5 | 73.5 | 165 | 562 | 505 | 72 | 593 | 405 | 987 | 45 |
| 58 | 597 | 401 | 73.5 | 73.5 | 190 | 577 | 525 | 72 | 607 | 405 | 1002 | 45 |
All measurements in millimetres unless marked (°) for angles.
