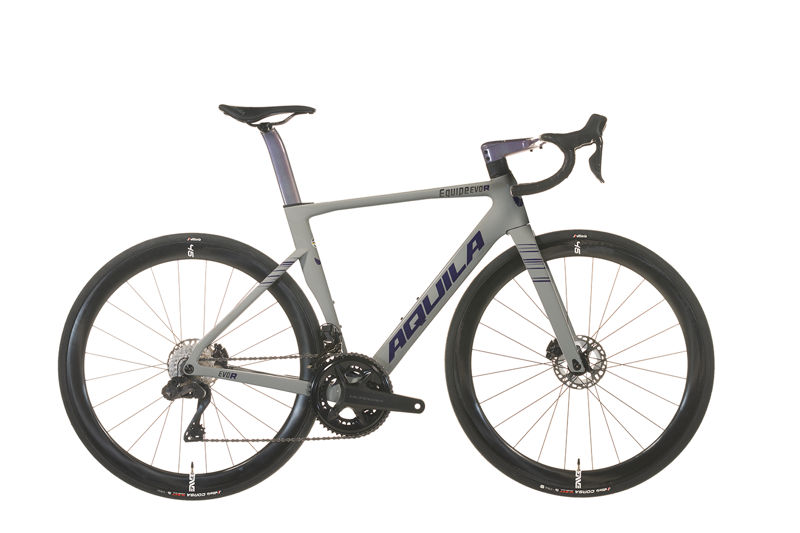

2023 Aquila Equipe EVO R geometry
Full frame geometry for the 2023 Aquila Equipe EVO R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 506 | 365 | 75 | 70.5 | 100 | 503 | 435 | 72 | 573 | 406 | 968 | 45 |
| 49 | 515 | 373 | 75 | 71.5 | 105 | 510 | 460 | 72 | 573 | 406 | 968 | 45 |
| 52 | 527 | 380 | 74 | 72.5 | 115 | 531 | 480 | 72 | 575 | 406 | 970 | 45 |
| 54 | 547 | 384 | 74 | 73 | 135 | 541 | 495 | 72 | 581 | 406 | 976 | 45 |
| 56 | 568 | 394 | 73.5 | 73.5 | 155 | 562 | 520 | 72 | 592 | 406 | 987 | 45 |
| 58 | 592 | 403 | 73.5 | 73.5 | 180 | 577 | 540 | 72 | 607 | 406 | 1002 | 45 |
All measurements in millimetres unless marked (°) for angles.
