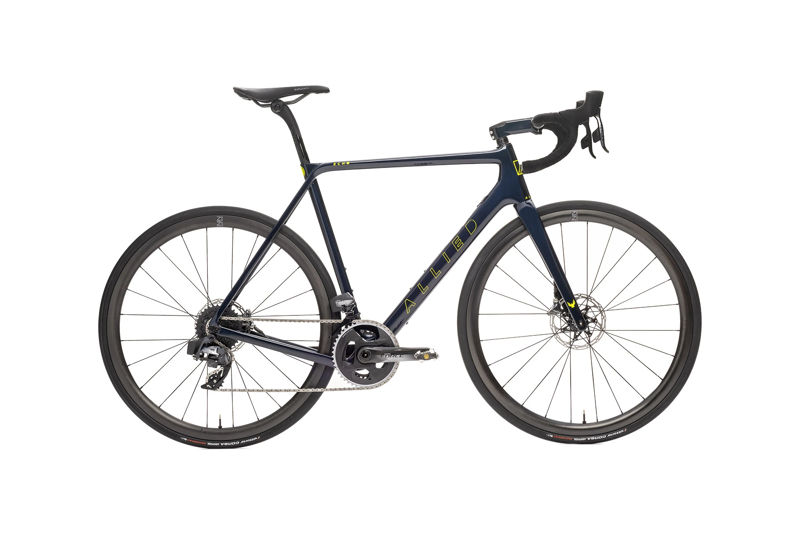

2020 Allied ECHO geometry
Full frame geometry for the 2020 Allied ECHO , size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 515 | 372 | 74.5 | 72 | 107 | 515 | 460 | 722 | 77.5 | 562 | 415 | 971 | 47 |
| XS | 530 | 381 | 74.5 | 72 | 123 | 528.3 | 510 | 736 | 77.5 | 576 | 415 | 985 | 47 |
| S | 550 | 387 | 73.5 | 73 | 140 | 549.8 | 530 | 769 | 77.5 | 580 | 415 | 988 | 47 |
| M | 570 | 394 | 73.5 | 73 | 161 | 563.5 | 550 | 804 | 77.5 | 593 | 415 | 1001 | 47 |
| L | 595 | 402 | 73.5 | 73 | 188 | 579 | 570 | 825 | 77.5 | 609 | 415 | 1017 | 47 |
| XL | 620 | 409 | 73.5 | 73 | 214 | 593.7 | 600 | 846 | 77.5 | 624 | 415 | 1032 | 47 |
All measurements in millimetres unless marked (°) for angles.
