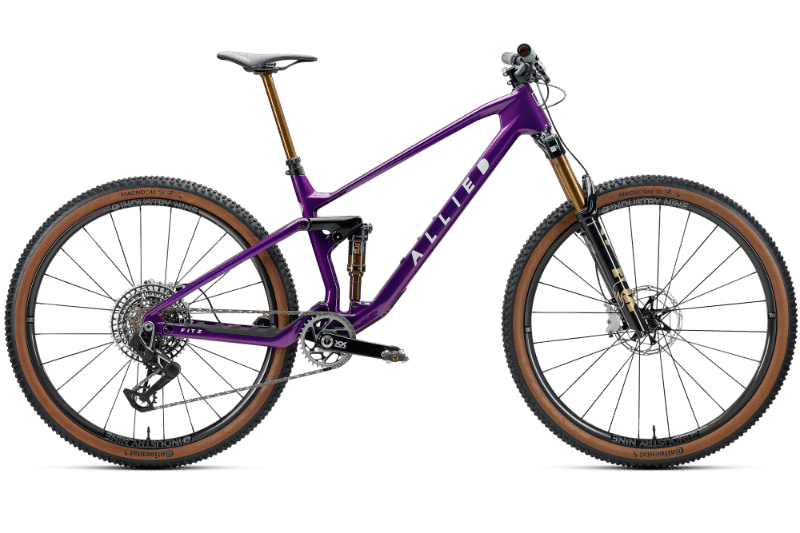

2026 Allied FITZ geometry
Full frame geometry for the 2026 Allied FITZ, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 610.7 | 430 | 76.6 | 64.5 | 95 | 575 | 380 | 797.2 | 35 | 753.3 | 440 | 1193 |
| MD | 619.7 | 455 | 76.6 | 64.5 | 105 | 603 | 410 | 814.6 | 35 | 782.6 | 440 | 1223 |
| LG | 633.3 | 480 | 76.5 | 64.5 | 120 | 632 | 430 | 832.4 | 35 | 814.1 | 440 | 1254 |
| XL | 646.8 | 505 | 76.5 | 64.5 | 135 | 660 | 460 | 854.9 | 35 | 845.5 | 440 | 1286 |
All measurements in millimetres unless marked (°) for angles.
