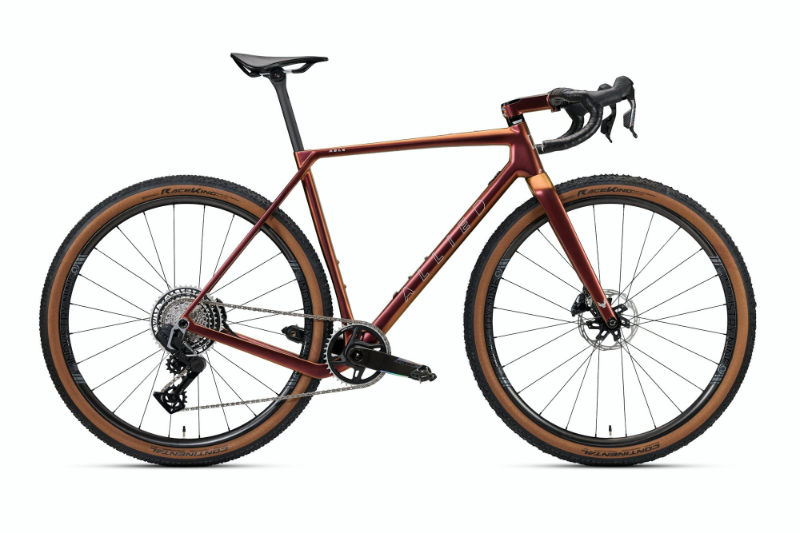

2025 Allied ABLE geometry
Full frame geometry for the 2025 Allied ABLE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 535 | 375 | 75 | 69 | 92 | 518 | 440 | 736 | 80 | 609 | 435 | 1036 | 55 |
| 52 | 540 | 390 | 75 | 70.5 | 97 | 534 | 460 | 752 | 80 | 611 | 435 | 1039 | 55 |
| 54 | 555 | 395 | 74 | 70.5 | 113 | 554 | 500 | 787 | 80 | 622 | 435 | 1049 | 55 |
| 56 | 575 | 400 | 74 | 70.5 | 135 | 564 | 530 | 812 | 80 | 633 | 435 | 1061 | 55 |
| 58 | 595 | 410 | 74 | 70.5 | 156 | 580 | 550 | 832 | 80 | 651 | 435 | 1078 | 55 |
| 61 | 615 | 415 | 74 | 70.5 | 177 | 591 | 570 | 852 | 80 | 663 | 435 | 1090 | 55 |
All measurements in millimetres unless marked (°) for angles.
