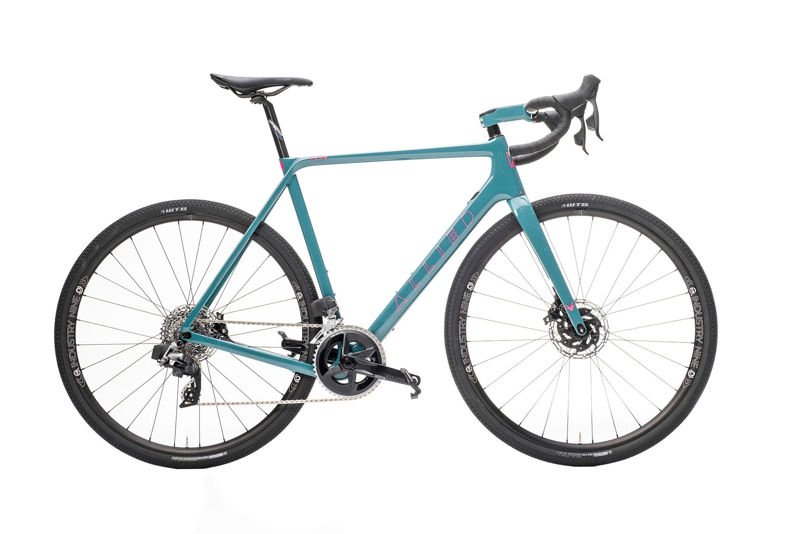

2020 Allied ECHO as GRAVEL geometry
Full frame geometry for the 2020 Allied ECHO as GRAVEL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 520 | 367 | 74 | 71.5 | 107 | 514.5 | 460 | 722 | 75 | 566 | 425 | 985 | 48 |
| XS | 535 | 376 | 74 | 71.5 | 123 | 527.8 | 510 | 736 | 75 | 580 | 425 | 999 | 48 |
| S | 555 | 382 | 73 | 72.5 | 140 | 550.3 | 530 | 769 | 75 | 584 | 425 | 1002 | 48 |
| M | 575 | 389 | 73 | 72.5 | 161 | 563 | 550 | 804 | 75 | 597 | 425 | 1015 | 48 |
| L | 600 | 397 | 73 | 72.5 | 188 | 578.5 | 570 | 825 | 75 | 613 | 425 | 1031 | 48 |
| XL | 625 | 404 | 73 | 72.5 | 214 | 593.2 | 600 | 846 | 75 | 628 | 425 | 1046 | 48 |
All measurements in millimetres unless marked (°) for angles.
