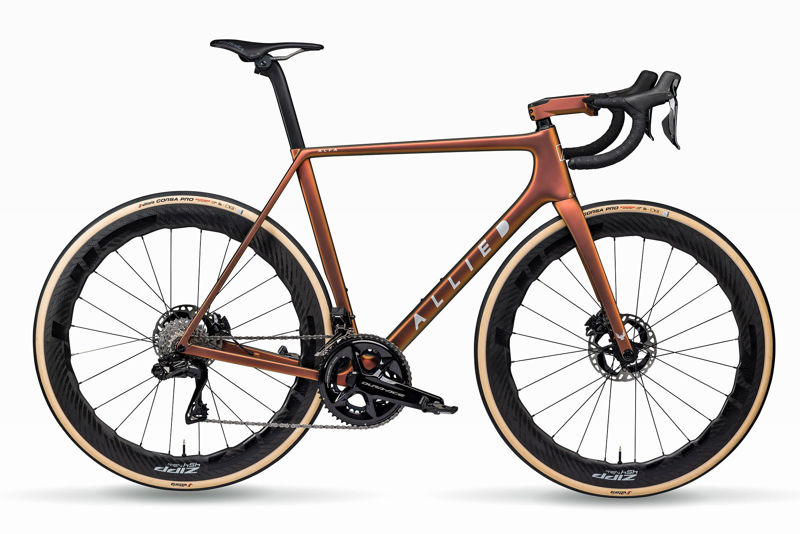

2024 Allied Alfa geometry
Full frame geometry for the 2024 Allied Alfa, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 515 | 375 | 74 | 72 | 109 | 523 | 440 | 750 | 73 | 410 | 968 | 44 |
| 52 | 530 | 383 | 74 | 72.5 | 121 | 535 | 490 | 780 | 73 | 410 | 972 | 44 |
| 54 | 550 | 389 | 74 | 73 | 142 | 547 | 510 | 780 | 73 | 410 | 984 | 44 |
| 56 | 570 | 396 | 73.5 | 73.5 | 161 | 565 | 530 | 800 | 73 | 410 | 993 | 44 |
| 58 | 595 | 404 | 73.5 | 73.5 | 187 | 580 | 560 | 830 | 73 | 410 | 1008 | 44 |
| 61 | 620 | 410 | 73.5 | 73.5 | 214 | 594 | 585 | 855 | 73 | 410 | 1021 | 44 |
All measurements in millimetres unless marked (°) for angles.
