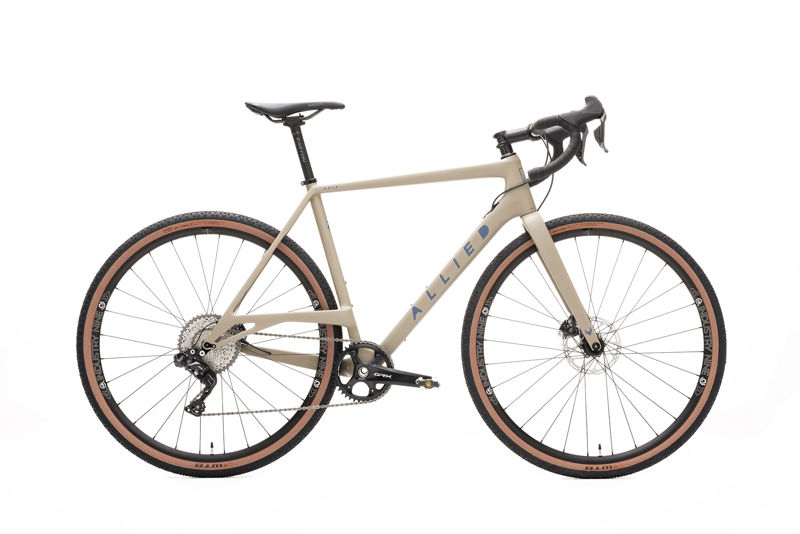

2020 Allied ABLE geometry
Full frame geometry for the 2020 Allied ABLE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 533 | 376 | 74 | 70 | 120 | 531 | 470 | 750 | 70 | 420 | 1009 | 51 |
| SM | 559 | 382 | 74 | 71 | 143 | 544 | 520 | 780 | 70 | 420 | 1019 | 51 |
| MD | 575 | 387 | 74 | 71 | 160 | 553 | 540 | 800 | 70 | 420 | 1029 | 51 |
| LG | 597 | 396 | 73.3 | 71 | 180 | 576 | 560 | 820 | 70 | 420 | 1040 | 51 |
| XL | 615 | 405 | 73.3 | 71 | 200 | 591 | 580 | 840 | 70 | 420 | 1055 | 51 |
All measurements in millimetres unless marked (°) for angles.
