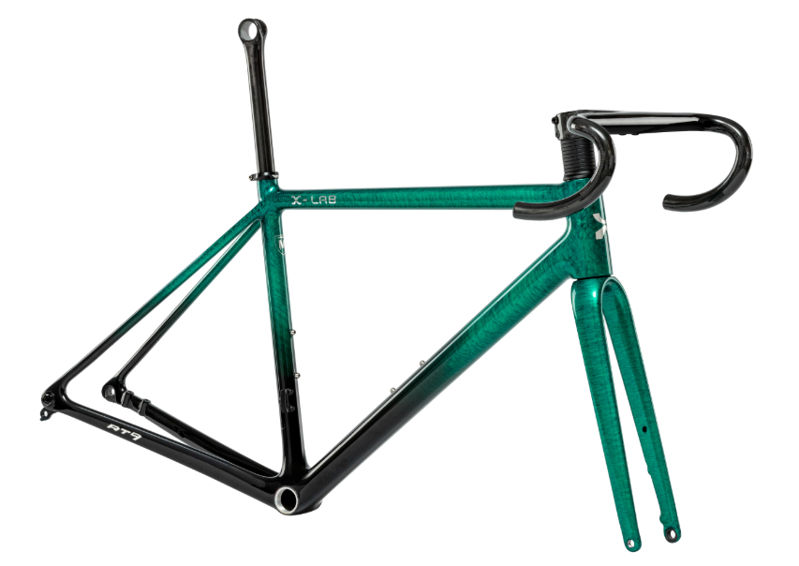

2025 X-Lab (XDS) RT9 geometry
Full frame geometry for the 2025 X-Lab (XDS) RT9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 362 | 75 | 70.5 | 110 | 498 | 430 | 74 | 574 | 410 | 972.5 | 50 | 68 |
| S | 525 | 372 | 74.2 | 71.7 | 120 | 520 | 460 | 74 | 578 | 410 | 977 | 50 | 61 |
| M | 543 | 384 | 74 | 73 | 137 | 540 | 480 | 72 | 578 | 410 | 978 | 44 | 59 |
| L | 567 | 396 | 73.5 | 73.5 | 157 | 563 | 500 | 72 | 592 | 410 | 992 | 44 | 56 |
All measurements in millimetres unless marked (°) for angles.
