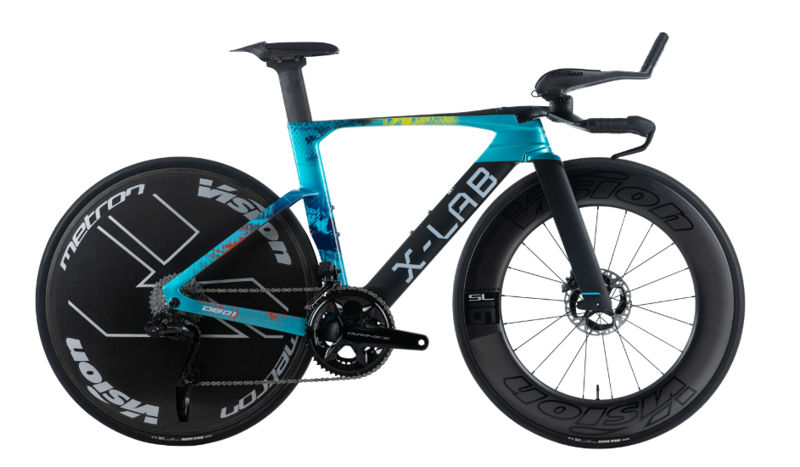

2024 X-Lab (XDS) DB01 geometry
Full frame geometry for the 2024 X-Lab (XDS) DB01, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 490 | 395 | 78 | 73 | 66 | 500 | 490 | 70 | 573 | 410 | 973 | 40 | 63 |
| M | 493 | 410 | 78 | 73 | 70 | 515 | 510 | 70 | 585 | 410 | 985 | 40 | 63 |
| L | 512 | 428 | 78 | 73 | 90 | 537 | 525 | 70 | 609 | 410 | 1001 | 40 | 63 |
| XL | 540 | 448 | 78 | 73 | 120 | 563 | 550 | 70 | 637 | 410 | 1035 | 40 | 63 |
All measurements in millimetres unless marked (°) for angles.
