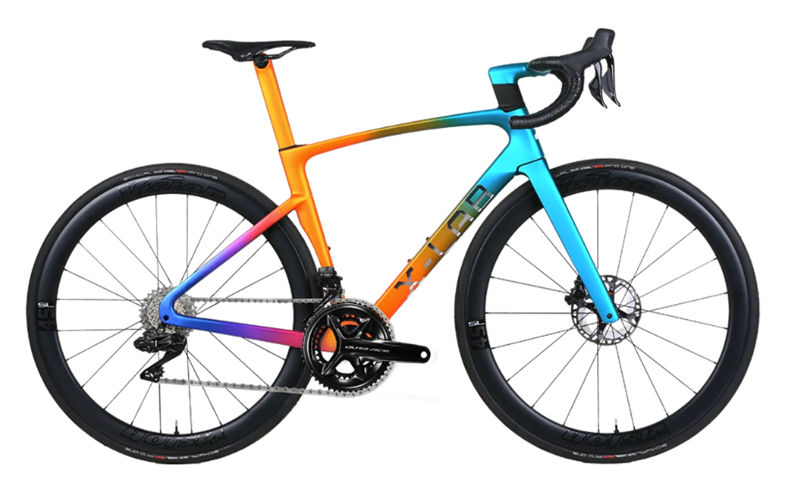

2025 X-Lab (XDS) RS9 geometry
Full frame geometry for the 2025 X-Lab (XDS) RS9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 508 | 360 | 74.4 | 70.8 | 104 | 502 | 440 | 72 | 569 | 408 | 966.3 | 50 | 65 |
| S | 525 | 370 | 74 | 71.5 | 119 | 520 | 460 | 72 | 578 | 410 | 977.6 | 50 | 60 |
| M | 544 | 380 | 73.6 | 72 | 135 | 540 | 480 | 72 | 583 | 410 | 982.1 | 43 | 64 |
| L | 564 | 390 | 73.5 | 72.3 | 153 | 557 | 505 | 72 | 592 | 410 | 991.3 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
