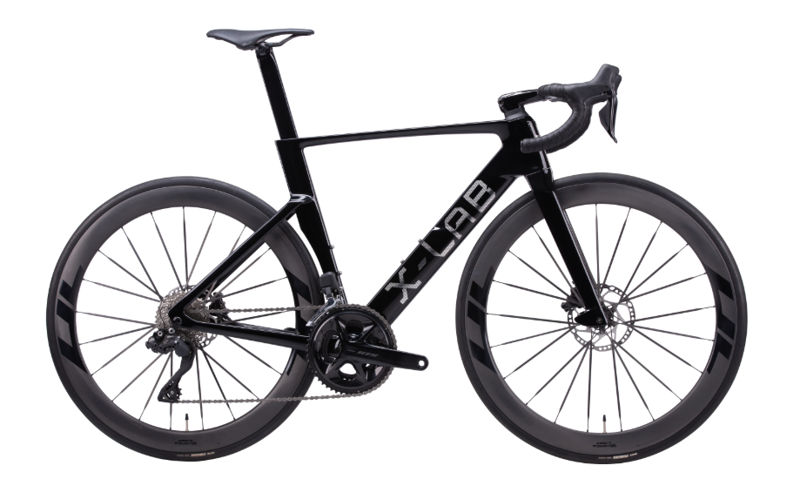

2024 X-Lab (XDS) AD8 geometry
Full frame geometry for the 2024 X-Lab (XDS) AD8, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 505 | 371 | 75.1 | 70.9 | 105 | 504 | 470 | 72 | 570 | 410 | 970 | 48 | 73 |
| S | 520 | 379 | 74.5 | 71.5 | 118 | 523 | 503 | 72 | 582 | 410 | 977.6 | 48 | 63 |
| M | 534 | 387 | 74 | 72.5 | 130 | 540 | 515 | 70 | 583 | 410 | 982 | 43 | 64 |
| L | 553 | 395 | 73.5 | 73 | 148 | 559 | 543 | 70 | 592 | 410 | 992 | 43 | 60.5 |
All measurements in millimetres unless marked (°) for angles.
