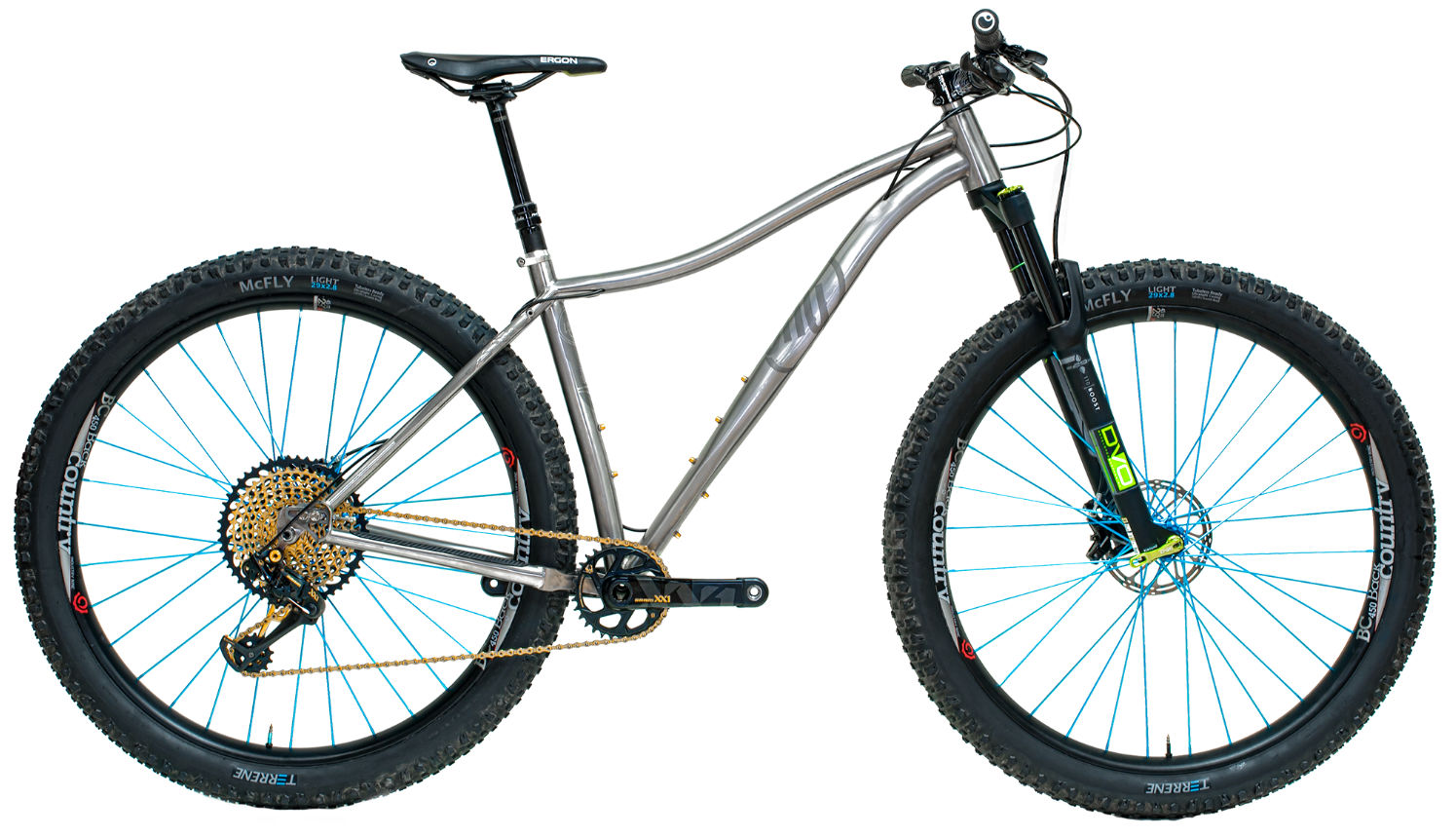

2017 Why Wayward geometry
Full frame geometry for the 2017 Why Wayward, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 630 | 455 | 73.5 | 68.3 | 102 | 623 | 460 | 859 | 70 | 734 | 440 | 1165 | 51 | 100 |
| L | 636 | 475 | 73.5 | 68.3 | 108 | 645 | 510 | 888 | 70 | 759 | 440 | 1190 | 51 | 100 |
| XL | 645 | 495 | 73.5 | 68.3 | 118 | 668 | 555 | 916 | 70 | 782 | 440 | 1213 | 51 | 100 |
All measurements in millimetres unless marked (°) for angles.
