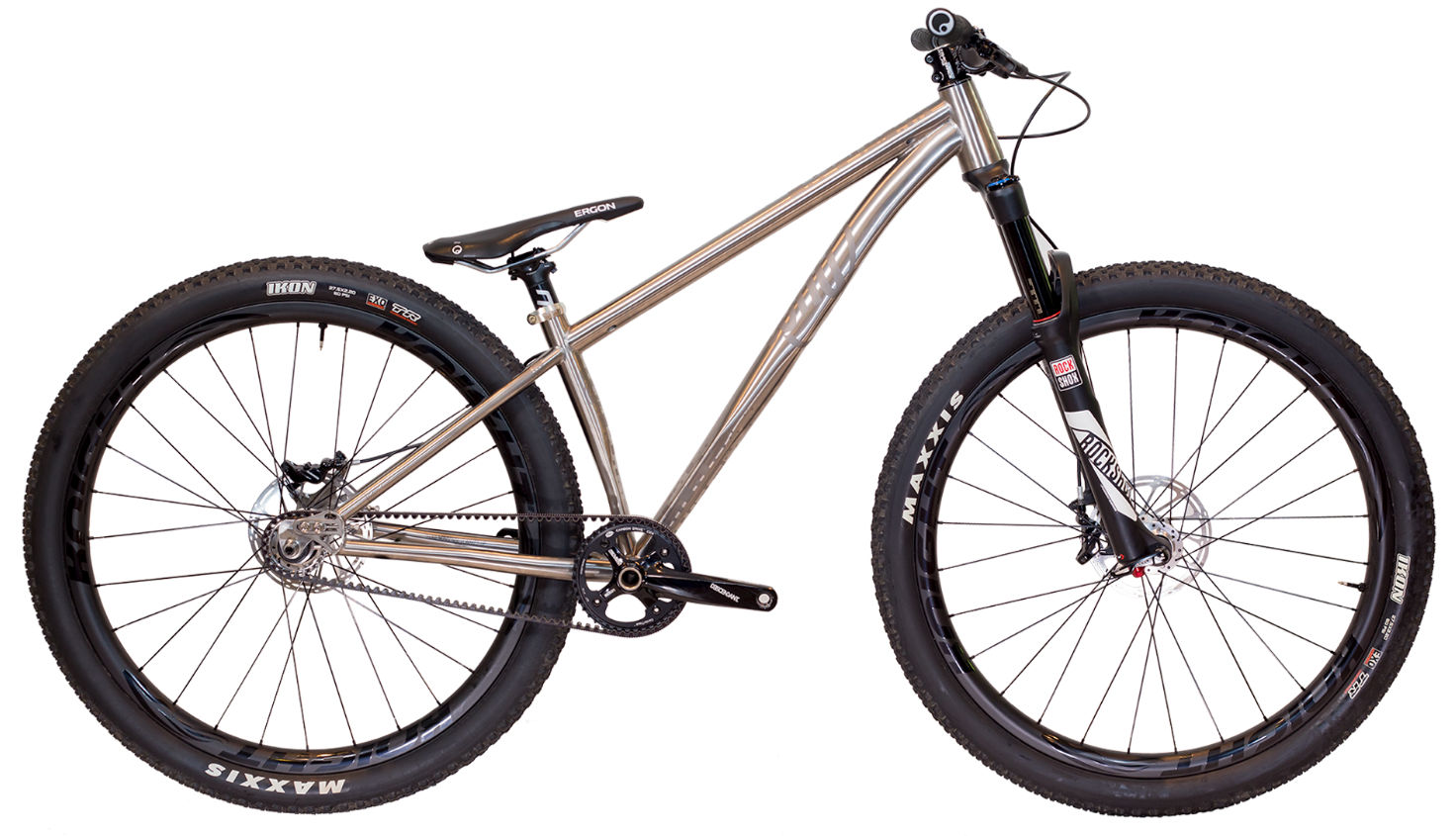

2017 Why TF geometry
Full frame geometry for the 2017 Why TF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| Uni | 563 | 417 | 71 | 70 | 103 | 590 | 340 | 757 | 44 | 400 |
All measurements in millimetres unless marked (°) for angles.
