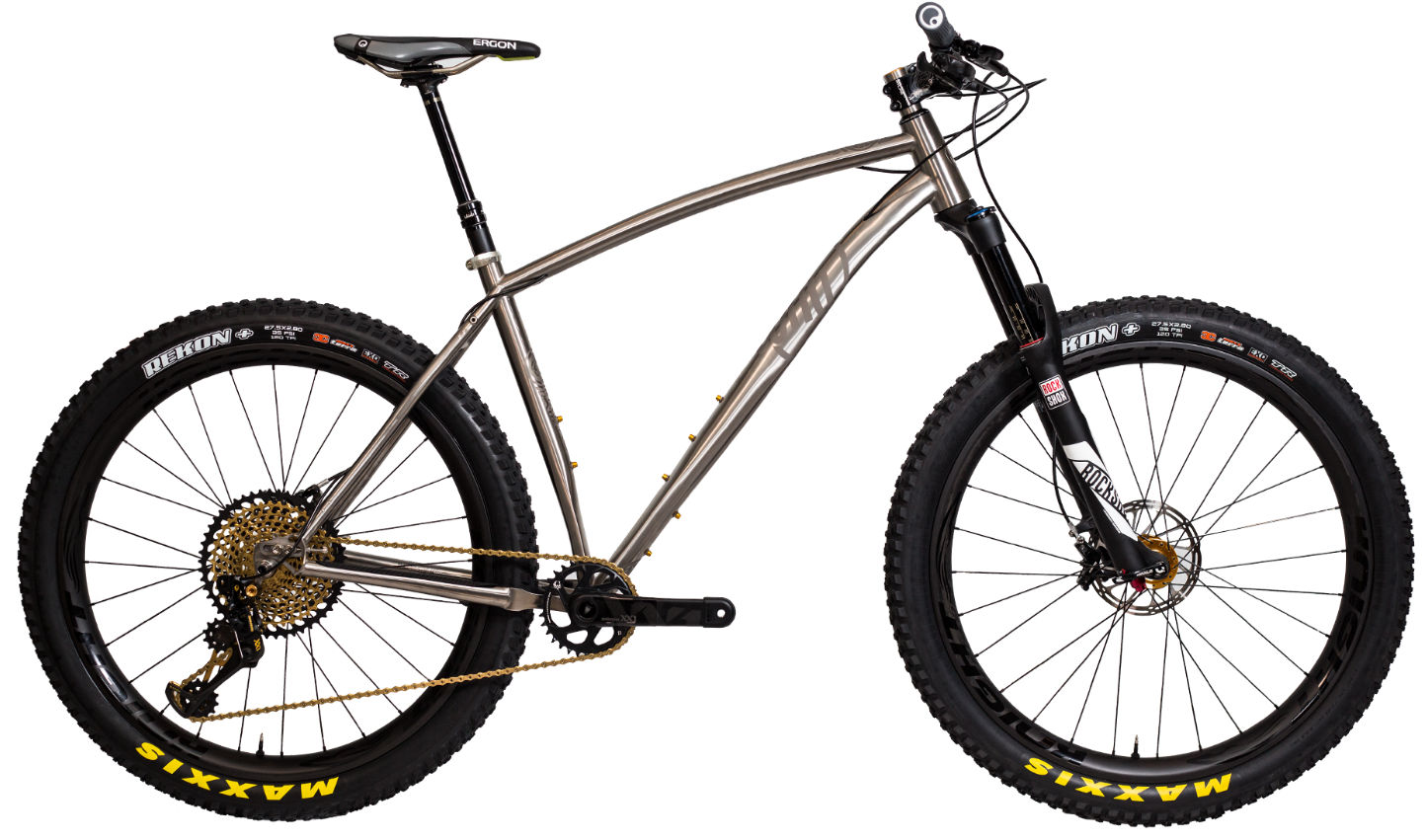

2017 Why S7 geometry
Full frame geometry for the 2017 Why S7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 608 | 420 | 73 | 67.5 | 100 | 588 | 380 | 795 | 65 | 425 |
| M | 615 | 440 | 73 | 67.5 | 103 | 608 | 435 | 828 | 65 | 425 |
| L | 620 | 460 | 73 | 67.5 | 113 | 632 | 485 | 856 | 65 | 425 |
| XL | 630 | 480 | 73 | 67.5 | 124 | 655 | 520 | 880 | 65 | 425 |
All measurements in millimetres unless marked (°) for angles.
