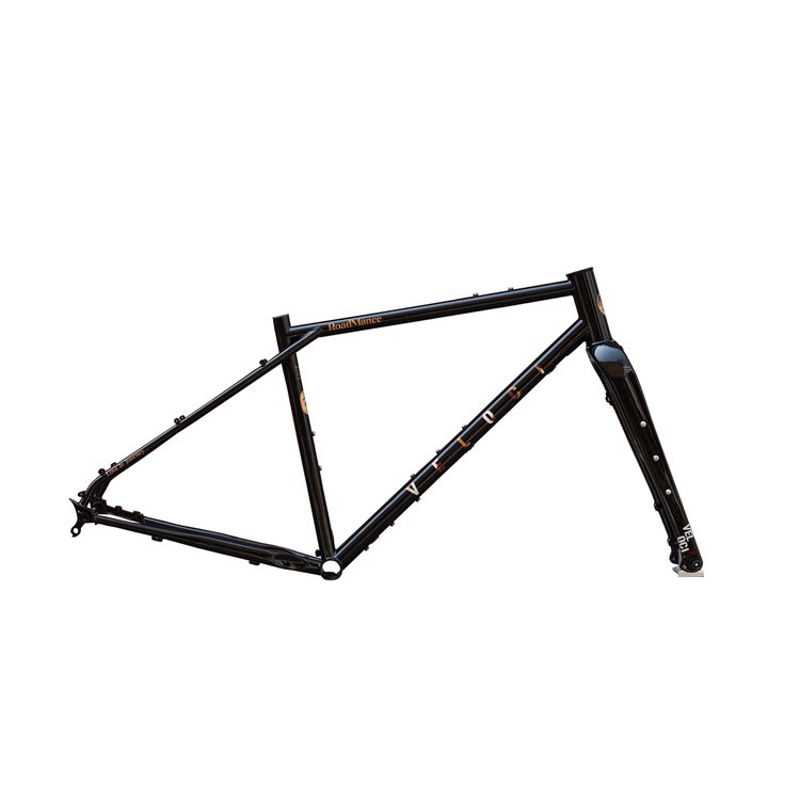

2022 Veloci Roadmance geometry
Full frame geometry for the 2022 Veloci Roadmance, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS 430mm | 548 | 390 | 74 | 69.5 | 115 | 547.2 | 430 | 771 | 65 | 440 | 1060 | 51 |
| S 460mm | 567 | 400 | 74 | 69.5 | 135 | 562 | 460 | 780 | 65 | 440 | 1077 | 51 |
| M 490mm | 601 | 410 | 74 | 69.5 | 155 | 582.5 | 490 | 797 | 65 | 440 | — | 51 |
| L 510mm | 619 | 420 | 74 | 69.5 | 175 | 598 | 510 | 816 | 65 | 440 | — | 51 |
| XL 530mm | 638 | 430 | 74 | 69.5 | 195 | 613 | 530 | 835 | 65 | 440 | — | 51 |
All measurements in millimetres unless marked (°) for angles.
