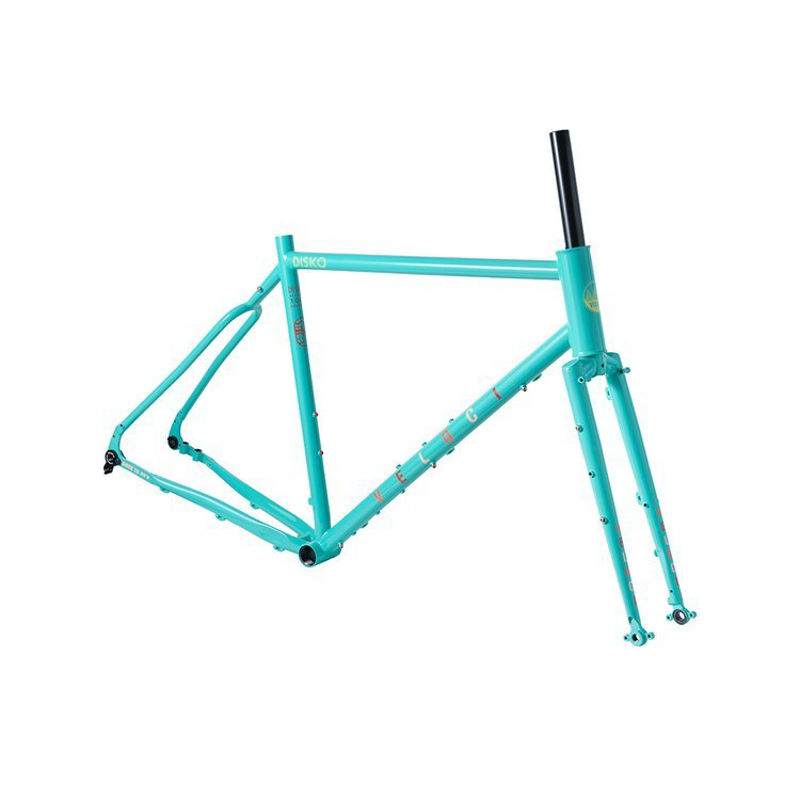

2022 Veloci Disko 80's geometry
Full frame geometry for the 2022 Veloci Disko 80's, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS 445mm | 522 | 365 | 75 | 70 | 105 | 505 | 445 | 745 | 70 | 420 | 998 | 51 |
| S 485mm | 538 | 370 | 74.5 | 70.5 | 120 | 519 | 485 | 772.5 | 70 | 420 | 1004 | 51 |
| M 525mm | 570 | 384 | 74 | 71.5 | 150 | 550 | 525 | 807 | 70 | 420 | 1022 | 51 |
| L 560mm | 584 | 393 | 73.5 | 71.5 | 185 | 575 | 560 | 840 | 70 | 420 | 1042 | 51 |
| XL 590mm | 619 | 399 | 73 | 72 | 200 | 590 | 590 | 862 | 70 | 420 | 1048 | 51 |
All measurements in millimetres unless marked (°) for angles.
