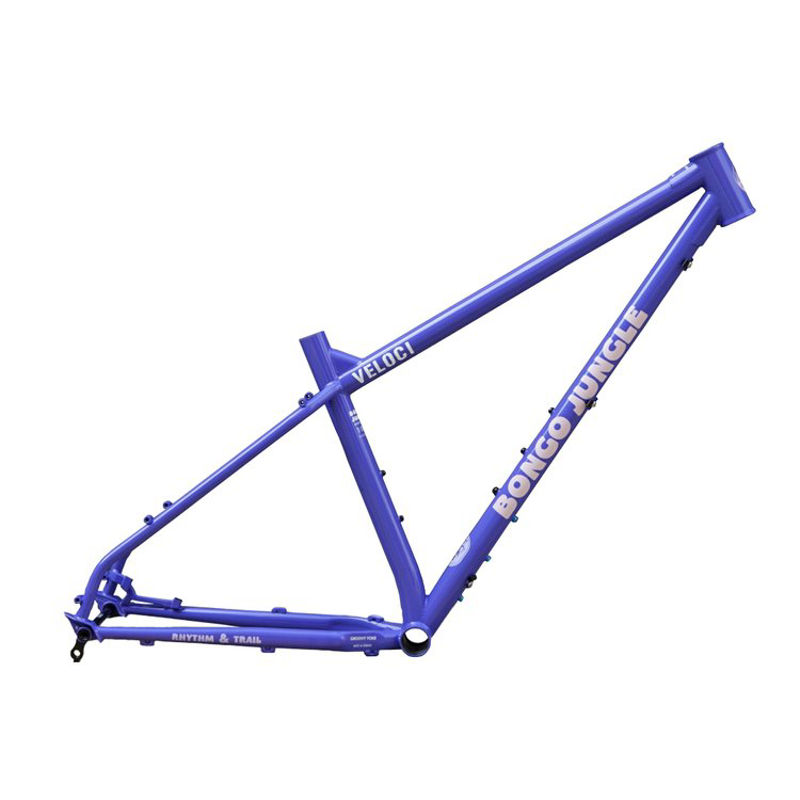

2022 Veloci Bongo Jungle geometry
Full frame geometry for the 2022 Veloci Bongo Jungle, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 603 | 430 | 73 | 67.5 | 100 | 614 | 380 | 799 | 48 | 425 | 1138 | 51 |
| S | 603 | 405 | 73 | 67.5 | 100 | 589 | 420 | 779 | 48 | 425 | 1112 | 51 |
| L | 612 | 455 | 73 | 67.5 | 110 | 642 | 450 | 814 | 48 | 425 | 1166 | 51 |
| XL | 622 | 485 | 73 | 67.5 | 120 | 675 | 490 | 838 | 48 | 425 | 1199 | 51 |
All measurements in millimetres unless marked (°) for angles.
