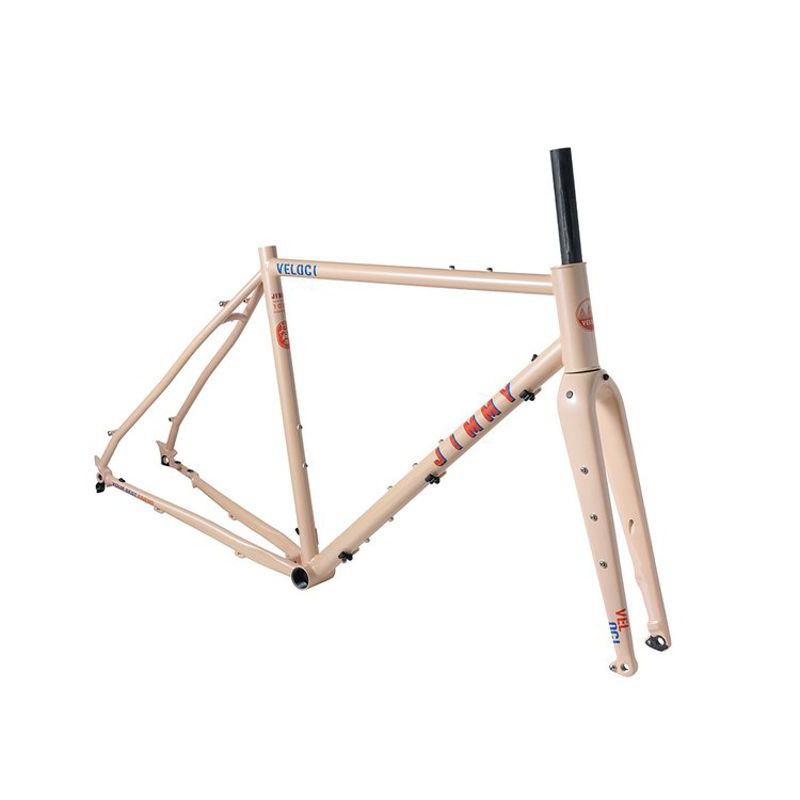

2022 Veloci Jimmy V2 geometry
Full frame geometry for the 2022 Veloci Jimmy V2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS 440mm | 527 | 364 | 75.5 | 71 | 95 | 500 | 440 | 728 | 70 | 432 | 998 | 48 |
| S 470mm | 540 | 370 | 74 | 72 | 105 | 525 | 470 | 748 | 70 | 432 | 999 | 48 |
| M 500mm | 561 | 379 | 73.5 | 72.5 | 125 | 545 | 500 | 772 | 70 | 432 | 1010 | 48 |
| L 540mm | 579 | 388 | 73.5 | 72.5 | 145 | 560 | 540 | 801 | 70 | 432 | 1025 | 48 |
| XL 570mm | 601 | 392 | 73 | 73 | 165 | 575 | 570 | 825 | 70 | 432 | 1030 | 48 |
All measurements in millimetres unless marked (°) for angles.
