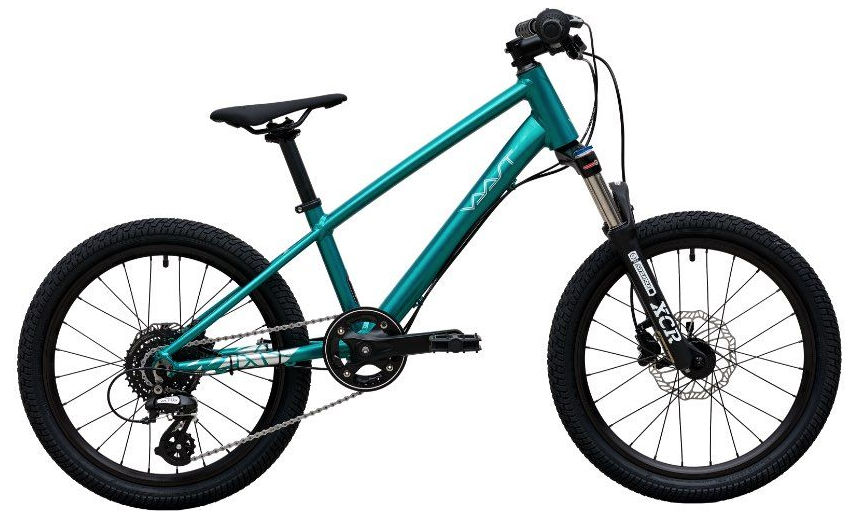

2019 Vaast Y/1 geometry
Full frame geometry for the 2019 Vaast Y/1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 457 | 310 | 72 | 68 | 140 | 459 | 265 | 567 | 20 | 546 | 350 | 895 |
| 24 | 522 | 357 | 72 | 68 | 150 | 527 | 310 | 616 | 35 | 598 | 410 | 1005 |
All measurements in millimetres unless marked (°) for angles.
