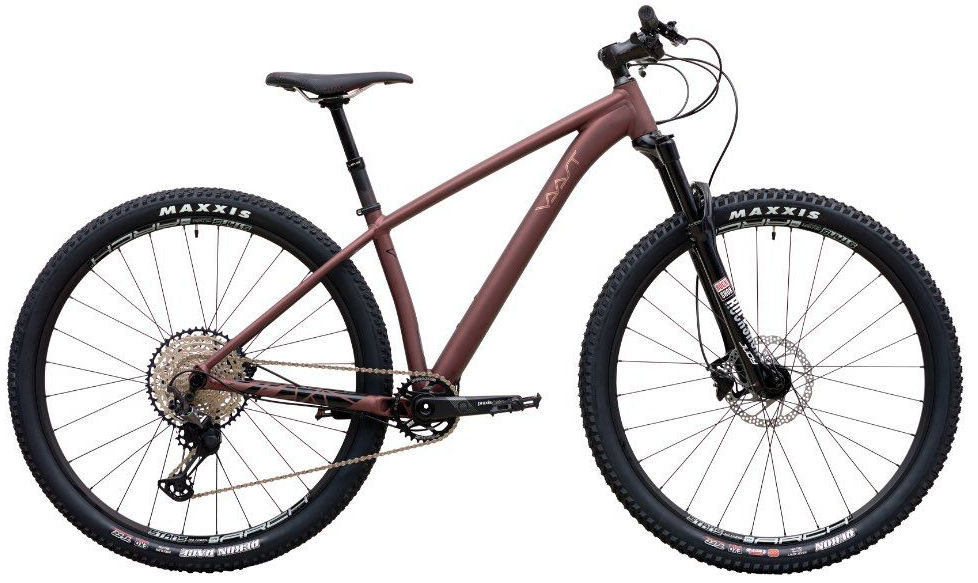

2019 Vaast M/1 geometry
Full frame geometry for the 2019 Vaast M/1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 615 | 395 | 74 | 68 | 105 | 577 | 415 | 748 | 60 | 664 | 435 | 1092 |
| M | 620 | 420 | 74 | 68 | 110 | 602 | 450 | 774 | 60 | 690 | 435 | 1119 |
| L | 629 | 440 | 74 | 68 | 120 | 626 | 480 | 804 | 60 | 715 | 435 | 1144 |
| XL | 643 | 460 | 74 | 68 | 135 | 650 | 530 | 840 | 60 | 741 | 435 | 1169 |
All measurements in millimetres unless marked (°) for angles.
