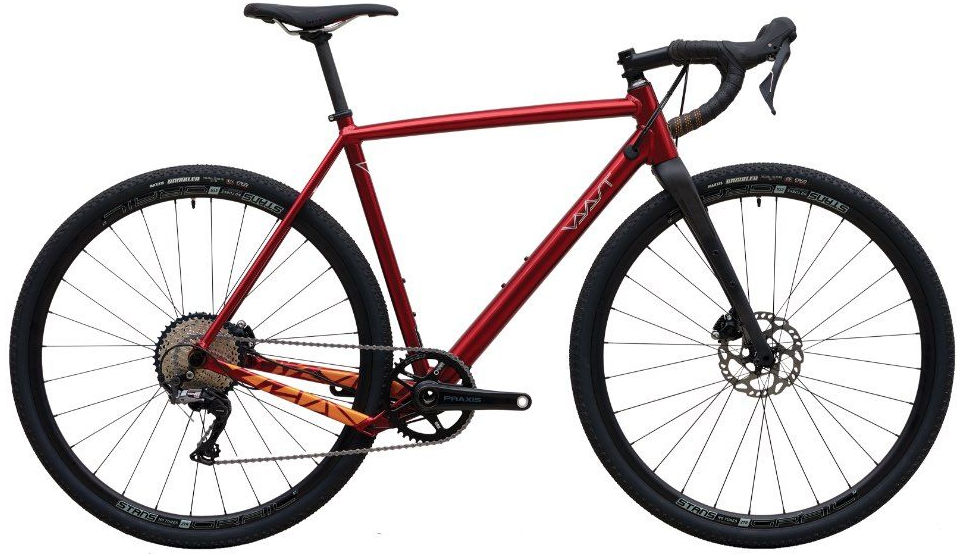

2019 Vaast A/1 geometry
Full frame geometry for the 2019 Vaast A/1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 536 | 365 | 72.5 | 70 | 115 | 534 | 520 | 774 | 68 | 592 | 425 | 1008 |
| M | 563 | 380 | 72.5 | 71 | 140 | 557 | 540 | 797 | 68 | 607 | 425 | 1023 |
| L | 595 | 395 | 72.5 | 72 | 170 | 583 | 560 | 821 | 68 | 623 | 425 | 1038 |
| XL | 620 | 410 | 72.5 | 72 | 195 | 605 | 580 | 841 | 68 | 645 | 425 | 1061 |
All measurements in millimetres unless marked (°) for angles.
