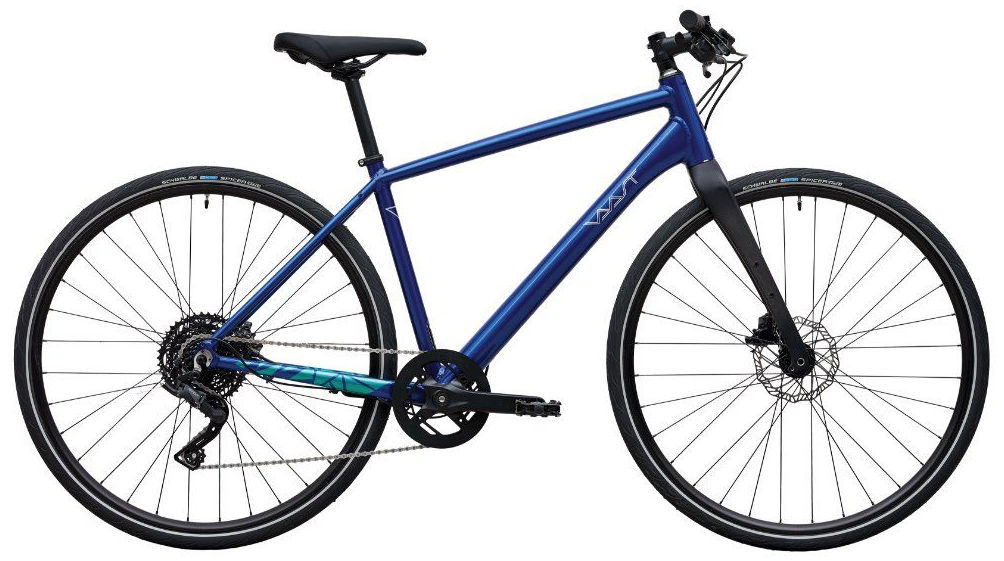

2019 Vaast U/1 geometry
Full frame geometry for the 2019 Vaast U/1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 555 | 390 | 73 | 71 | 130 | 560 | 405 | 715 | 65 | 615 | 438 | 1045 |
| M | 590 | 410 | 73 | 71 | 167 | 590 | 455 | 758 | 65 | 647 | 438 | 1077 |
| L | 631 | 435 | 73 | 71 | 210 | 628 | 510 | 808 | 65 | 686 | 438 | 1116 |
All measurements in millimetres unless marked (°) for angles.
