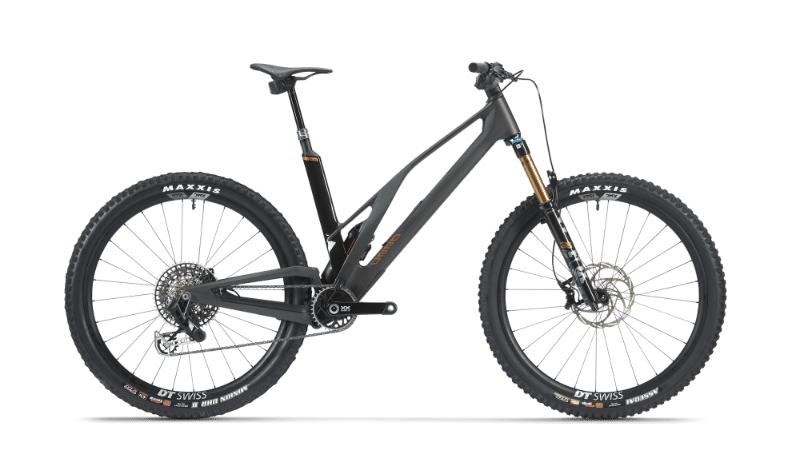

2026 Unno Dash geometry
Full frame geometry for the 2026 Unno Dash, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | 623 | 435 | 77.8 | 64.8 | 105 | 572 | 440 | 700 | 35 | 445 | 1208 |
| S2 | 633 | 470 | 77.8 | 64.8 | 120 | 620 | 460 | 700 | 35 | 445 | 1255 |
| S3 | 659 | 510 | 77.8 | 64.8 | 145 | 666 | 490 | 700 | 35 | 445 | 1300 |
All measurements in millimetres unless marked (°) for angles.
