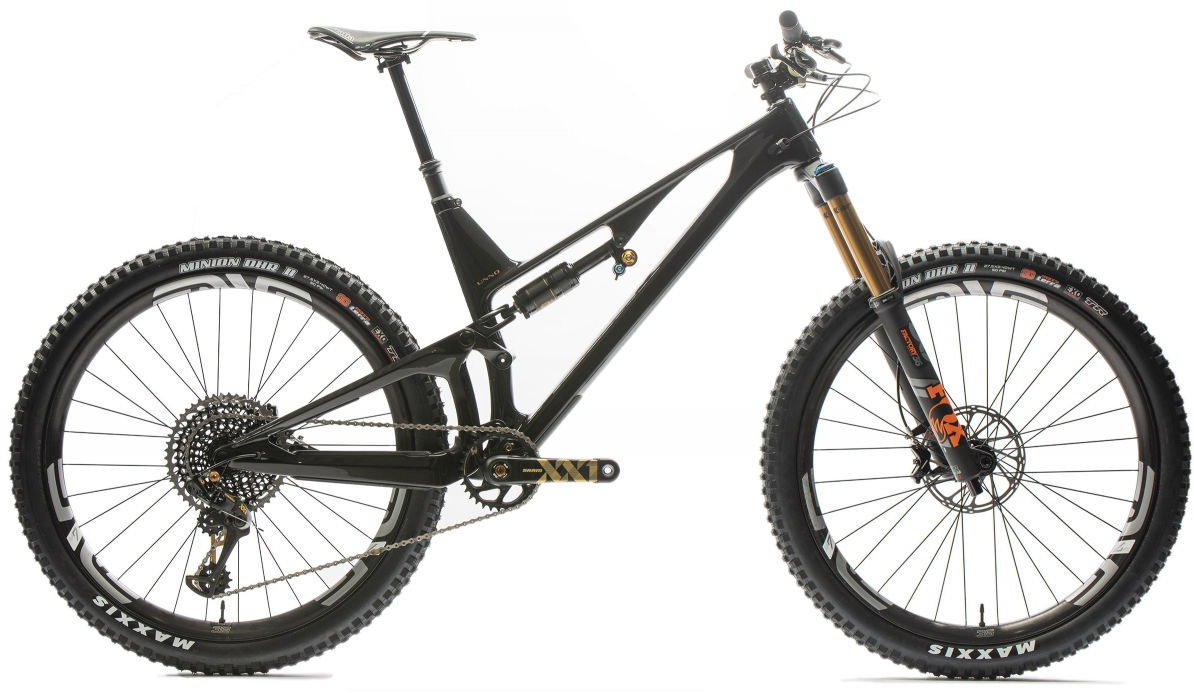

2019 Unno Burn geometry
Full frame geometry for the 2019 Unno Burn, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Uni | 593 | 455 | 74.3 | 64 | 100 | 440 | 844 | 15 | 770 | 438 | 1208 |
All measurements in millimetres unless marked (°) for angles.
