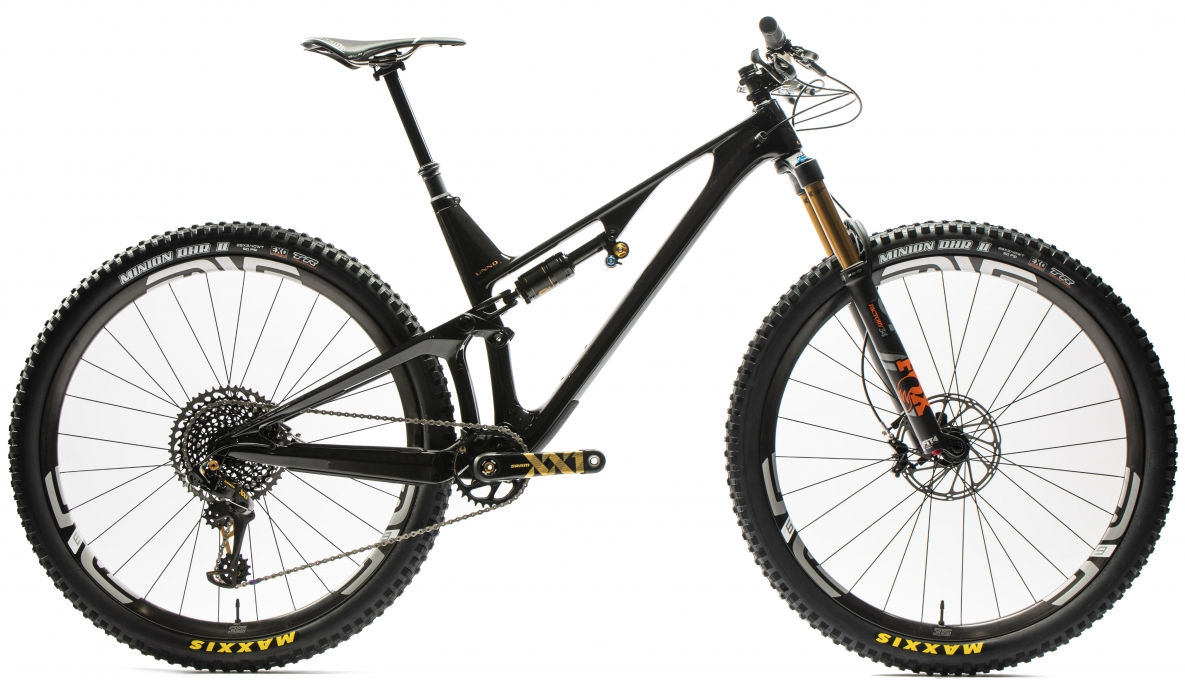

2019 Unno Dash geometry
Full frame geometry for the 2019 Unno Dash, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Uni | 590 | 455 | 75.5 | 65.5 | 85 | 455 | 828 | 36 | 752 | 430 | 1180 |
All measurements in millimetres unless marked (°) for angles.
