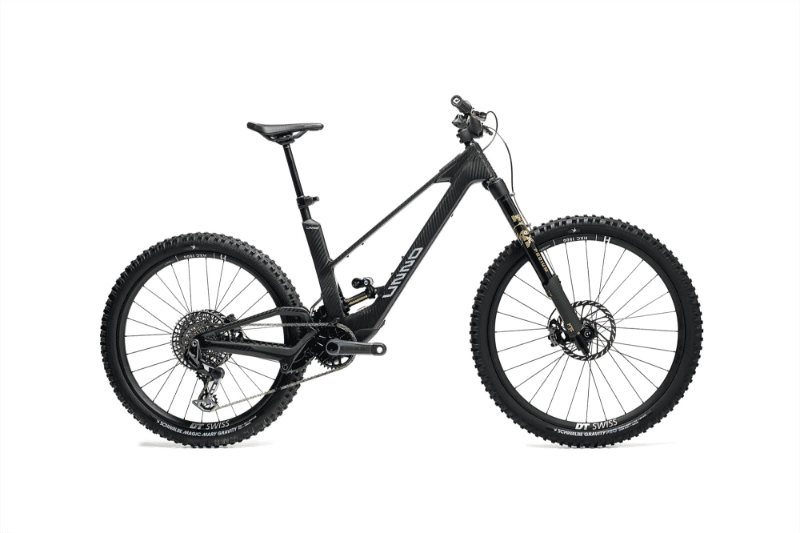

2026 Unno Mith geometry
Full frame geometry for the 2026 Unno Mith, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S1 | 624 | 430 | 77 | 63.5 | 107 | 560 | 420 | 706 | 450 | 1225 |
| S2 | 636 | 460 | 77 | 63.5 | 120 | 590 | 420 | 706 | 450 | 1261 |
| S3 | 658 | 490 | 77 | 63.5 | 145 | 623 | 440 | 706 | 450 | 1302 |
All measurements in millimetres unless marked (°) for angles.
