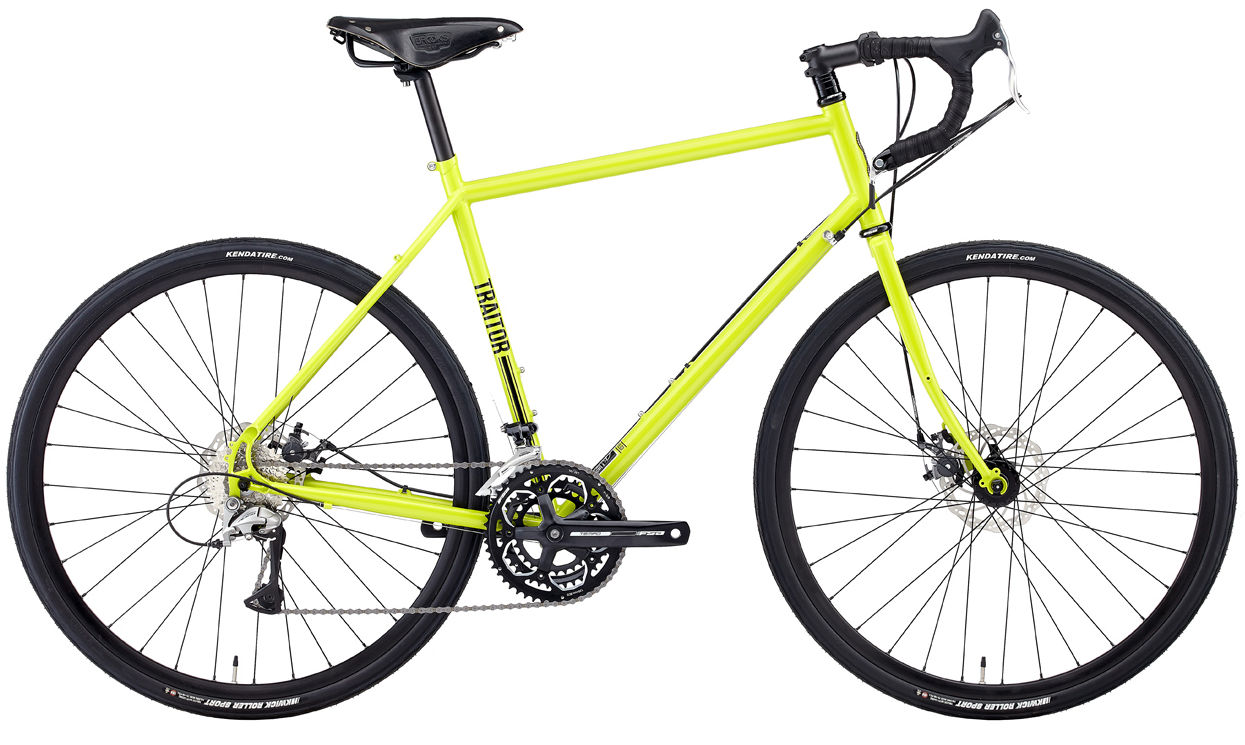

2015 Traitor Wander geometry
Full frame geometry for the 2015 Traitor Wander, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 573 | 367 | 74 | 71 | 140 | 530 | 732 | 70 | 445 |
| S | 586 | 371 | 74 | 71 | 155 | 540 | 769 | 70 | 445 |
| M | 601 | 381 | 74 | 71 | 170 | 555 | 777 | 70 | 445 |
| L | 614 | 391 | 73 | 71 | 185 | 580 | 801 | 70 | 445 |
| XL | 630 | 407 | 73 | 71 | 200 | 600 | 818 | 70 | 445 |
All measurements in millimetres unless marked (°) for angles.
