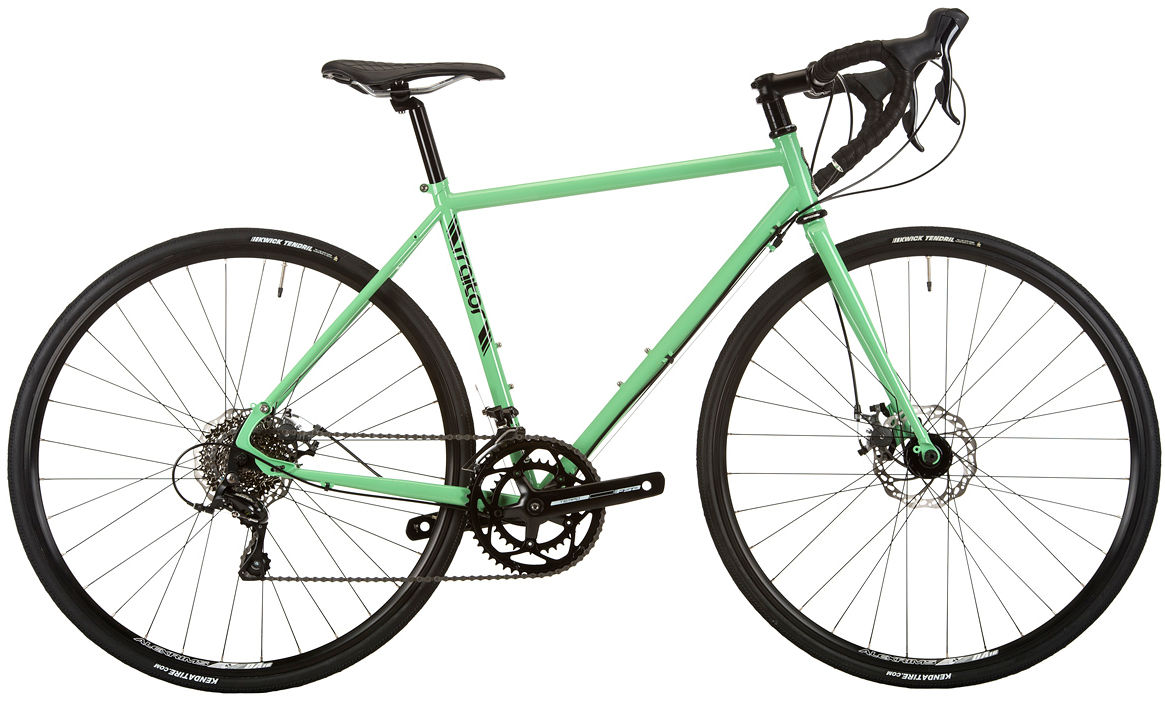

2015 Traitor Ruben geometry
Full frame geometry for the 2015 Traitor Ruben, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 548 | 378 | 74 | 72 | 112 | 535 | 750 | 68 | 426 |
| M | 555 | 383 | 73 | 72 | 120 | 550 | 772 | 68 | 426 |
| L | 574 | 394 | 73 | 72 | 140 | 570 | 800 | 68 | 426 |
| XL | 608 | 408 | 72.5 | 72 | 175 | 600 | 829 | 68 | 426 |
All measurements in millimetres unless marked (°) for angles.
