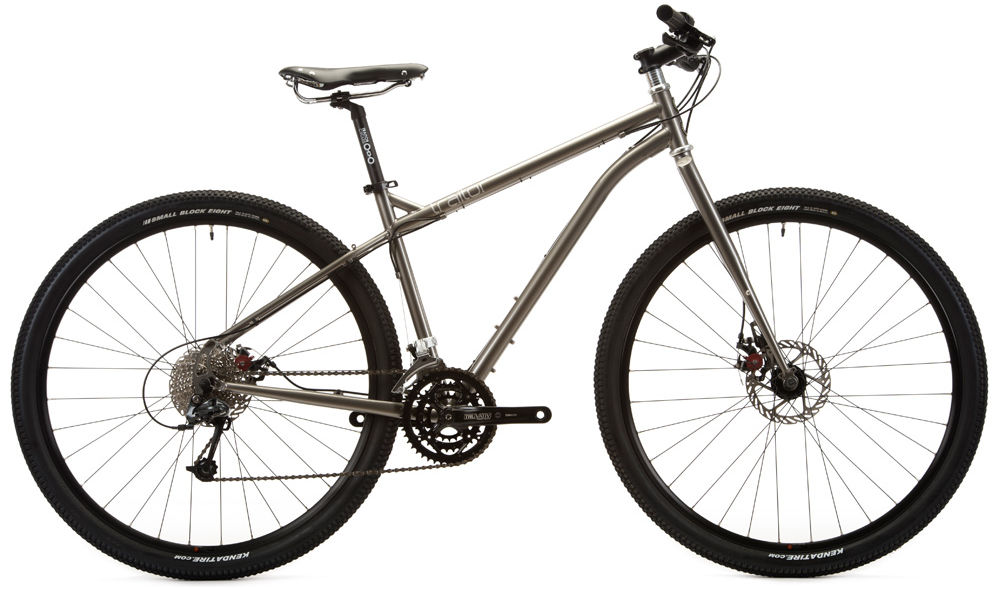

2015 Traitor Slot geometry
Full frame geometry for the 2015 Traitor Slot, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 597 | 375 | 73 | 71 | 100 | 560 | 695 | 65 | 455 |
| M | 606 | 399 | 73 | 71 | 110 | 585 | 716 | 65 | 455 |
| L | 616 | 421 | 73 | 71 | 120 | 610 | 750 | 65 | 455 |
| XL | 626 | 443 | 73 | 71 | 130 | 635 | 780 | 65 | 455 |
All measurements in millimetres unless marked (°) for angles.
