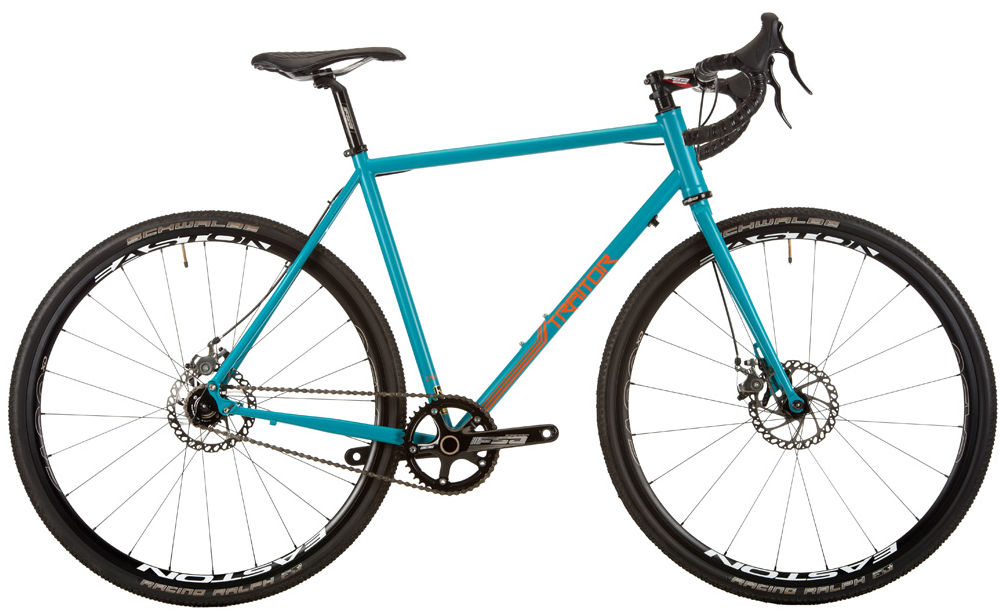

2015 Traitor Crusade geometry
Full frame geometry for the 2015 Traitor Crusade, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 48 | 534 | 365 | 74 | 71 | 122 | 520 | 749 | 67 | 426 |
| 52 | 548 | 377 | 73 | 72 | 130 | 545 | 780 | 67 | 426 |
| 55 | 581 | 391 | 73 | 72 | 150 | 570 | 810 | 67 | 426 |
| 58 | 595 | 406 | 73 | 72 | 170 | 600 | 833 | 67 | 426 |
All measurements in millimetres unless marked (°) for angles.
