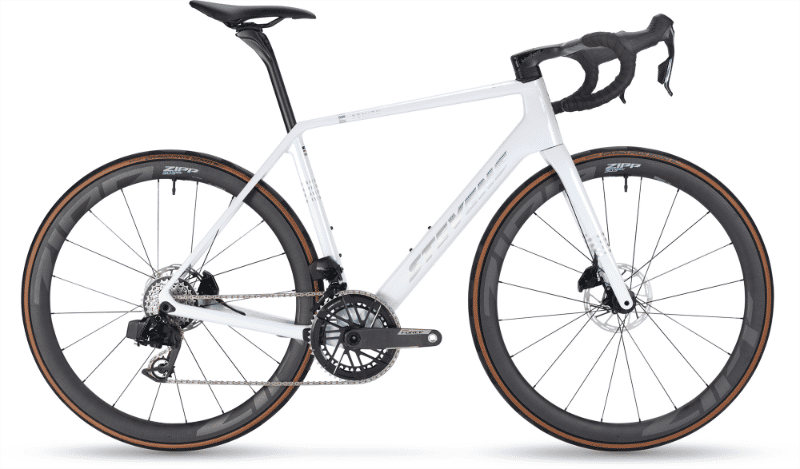

2026 Stevens Xenith geometry
Full frame geometry for the 2026 Stevens Xenith, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 498 | 381 | 75.5 | 71.5 | 105 | 510 | 411 | 721 | 73 | 575 | 415 | 979 | 45 |
| 51 | 508 | 384 | 74.5 | 71.5 | 115 | 525 | 430 | 736 | 73 | 582 | 415 | 986 | 45 |
| 54 | 540 | 384 | 74 | 72.5 | 145 | 539 | 455 | 764 | 73 | 583 | 415 | 987 | 45 |
| 56 | 559 | 390 | 73.5 | 72.5 | 165 | 555 | 477 | 784 | 73 | 595 | 415 | 999 | 45 |
| 58 | 579 | 398 | 73.5 | 73 | 185 | 570 | 499 | 806 | 73 | 604 | 415 | 1009 | 45 |
| 61 | 615 | 402 | 73 | 73.5 | 220 | 590 | 527 | 837 | 73 | 614 | 415 | 1018 | 45 |
All measurements in millimetres unless marked (°) for angles.
