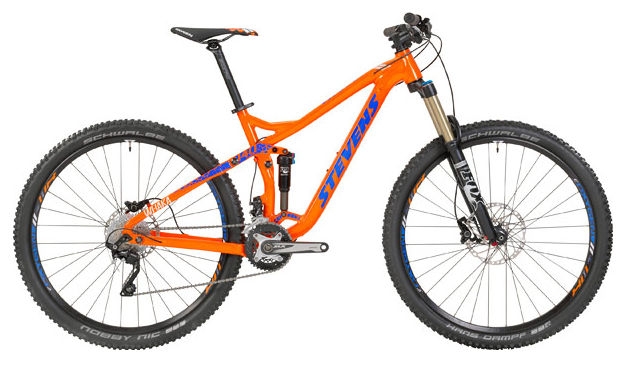

2015 Stevens Whaka geometry
Full frame geometry for the 2015 Stevens Whaka, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 594 | 416 | 75.4 | 67 | 110 | 565 | 420 | 748 | 16 | 709 | 430 | 1139 | 44 |
| 18 | 616 | 433 | 74.6 | 67 | 100 | 590 | 450 | 753 | 33 | 736 | 445 | 1179 | 51 |
| 20 | 625 | 449 | 74.3 | 67 | 110 | 610 | 480 | 757 | 33 | 756 | 445 | 1199 | 51 |
| 22 | 644 | 462 | 74 | 67 | 130 | 630 | 510 | 761 | 33 | 777 | 445 | 1220 | 51 |
All measurements in millimetres unless marked (°) for angles.
