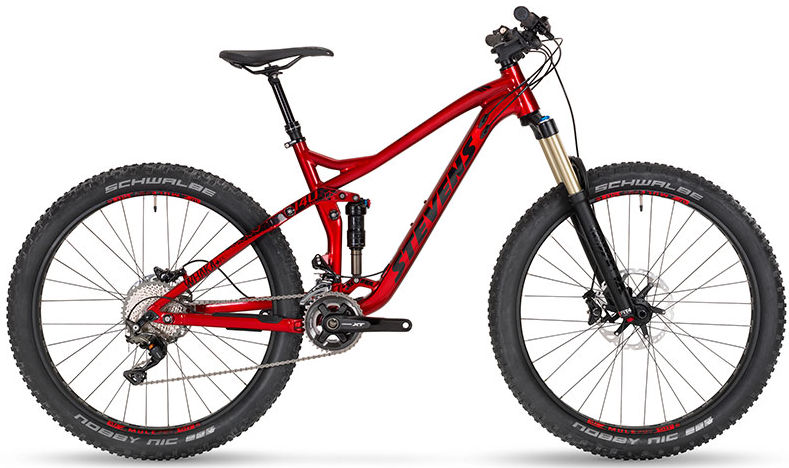

2016 Stevens Whaka+ ES geometry
Full frame geometry for the 2016 Stevens Whaka+ ES, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 605 | 412 | 75 | 67 | 110 | 565 | 420 | 760 | 20 | 716 | 435 | 1150 | 51 |
| 18 | 614 | 433 | 74.6 | 67 | 120 | 590 | 450 | 762 | 20 | 741 | 435 | 1175 | 51 |
| 20 | 624 | 454 | 74.3 | 67 | 130 | 615 | 480 | 763 | 20 | 766 | 435 | 1201 | 51 |
| 22 | 633 | 476 | 74 | 67 | 140 | 640 | 510 | 766 | 20 | 792 | 435 | 1226 | 51 |
All measurements in millimetres unless marked (°) for angles.
