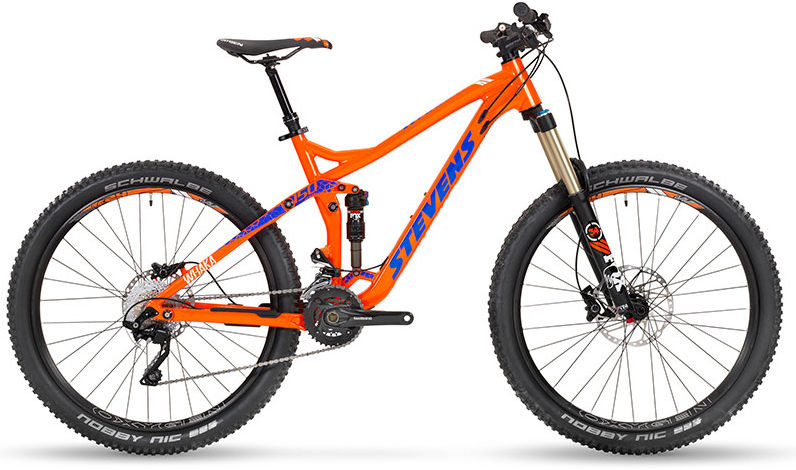

2016 Stevens Whaka 27.5 geometry
Full frame geometry for the 2016 Stevens Whaka 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 594 | 417 | 75 | 67 | 110 | 565 | 420 | 747 | 16 | 709 | 430 | 1139 | 44 |
| 18 | 603 | 433 | 74.6 | 67 | 120 | 585 | 450 | 750 | 16 | 730 | 430 | 1159 | 44 |
| 20 | 621 | 445 | 74.3 | 67 | 140 | 605 | 480 | 754 | 16 | 750 | 430 | 1180 | 44 |
All measurements in millimetres unless marked (°) for angles.
