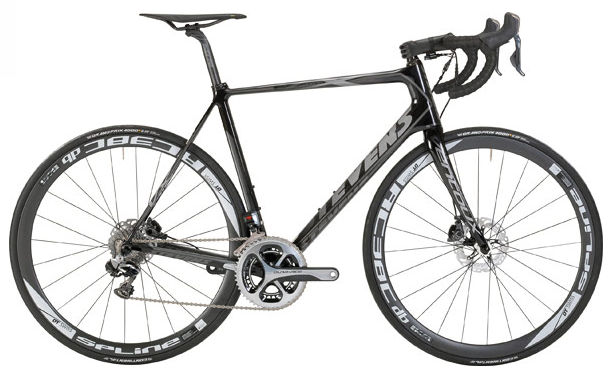

2015 Stevens Ventoux Disc geometry
Full frame geometry for the 2015 Stevens Ventoux Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 507 | 378 | 74.5 | 71.5 | 110 | 518 | 474 | 724 | 70 | 575 | 405 | 969 | 45 |
| 52 | 524 | 387 | 74.5 | 72.5 | 125 | 532 | 488 | 740 | 70 | 581 | 405 | 976 | 45 |
| 54 | 545 | 386 | 74 | 73 | 145 | 542 | 508 | 761 | 70 | 582 | 405 | 977 | 45 |
| 56 | 566 | 387 | 73.5 | 73.5 | 165 | 555 | 531 | 781 | 70 | 585 | 405 | 980 | 45 |
| 58 | 585 | 396 | 73.5 | 73.5 | 185 | 570 | 546 | 796 | 70 | 600 | 405 | 995 | 45 |
| 60 | 609 | 405 | 73.5 | 73.5 | 210 | 585 | 573 | 822 | 70 | 615 | 405 | 1010 | 45 |
| 62 | 633 | 404 | 73.5 | 73.5 | 235 | 592 | 595 | 844 | 70 | 622 | 405 | 1017 | 45 |
All measurements in millimetres unless marked (°) for angles.
